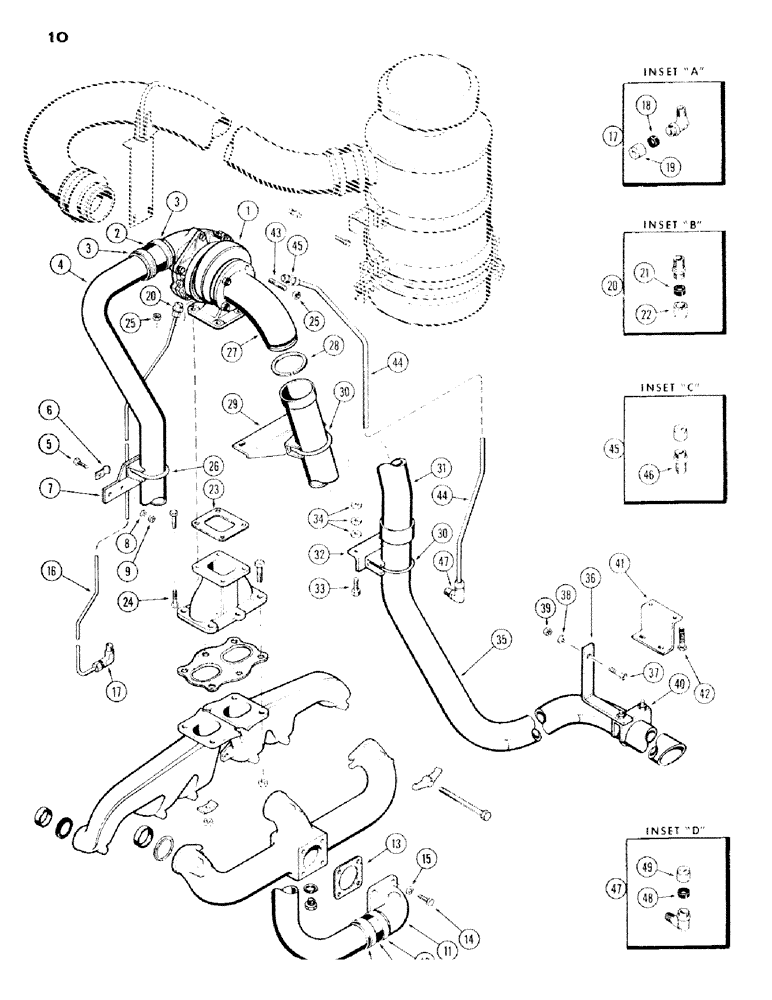

Запчасти Case IH 1200 (010) - TURBO CHARGER SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

A34289

TURBOCHARGER

TURBO ASSY. - engine (Repairs, Figure 15)

1шт.

2

A24970

HOSE - turbo to intake tube

1шт.

3

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

4

A24969

TUBE - air intake

1шт.

5

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

6

A20541

CLIP

- oil tube bracket

1шт.

7

A24986

BRACKET - turbo intake tube

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

1шт.

10

A24971

HOSE -, Serial Range: elbow-tube

1шт.

11

A24967

ELBOW - intake manifold

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, (2-5/16" to 3-1/4")

2шт.

13

A20915

GASKET

- intake manifold

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

A24990

TUBE -, Serial Range: base-turbo

1шт.

17

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" tube x 1/4" P.T. (See inset "A"), Includes: Ref. 18 and 19

1шт.

18

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT - hex., 1/4" tube

1шт.

20

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - 1/4" tube x 1/8" P.T. (See inset "B"), Includes: Ref. 21 and 22

1шт.

21

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

22

222-102

SLEEVE,1/4" Tube

NUT - hex., 1/4" Tube

1шт.

23

A24968

GASKET

- mtg., turbo to exh. stack

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

25

131-903

NUT,3/8"-16

NUT - hex., 3/8" N.C. (Seez-Pruf)

8шт.

26

A13240

CLAMP,2-5/8" ID

ASSY. - turbo, Serial Range: tube-bracket

1шт.

27

A34818

ELBOW - turbo exhaust

1шт.

28

A34819

RING - sealing, turbo exhaust

1шт.

29

A56084

BRACKET - upper, turbo exhaust pipe

1шт.

30

A56086

COLLAR CLAMP

CLAMP ASSY. - turbo exhaust pipe

2шт.

31

A56082

PIPE - turbo exhaust, upper

1шт.

32

A56085

BRACKET - lower, turbo exh. pipe

1шт.

33

113-220

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex. hd., 3/8 x 1-1/4" N.C. (Self-locking)

3шт.

34

195-25

WASHER,3/8"

- plain, 3/8"

9шт.

35

A56189

PIPE - lower, turbo exhaust

1шт.

36

A56190

BRACKET - turbo, Serial Range: pipe-frame

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

1шт.

40

A56086

COLLAR CLAMP

CLAMP ASSY. - lower exhaust pipe

3шт.

41

A56517

BRACKET - lower exhaust pipe

3шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

43

A29356

STUD

- turbo to exhaust elbow

4шт.

44

A24998

TUBE ASSY. - oil drain, turbo to cyl. blk

1шт.

45

222-416

CONNECTOR, ELEC

CONNECTOR ASSY. - 5/8" tube x 1/2" P.T. (See inset "C"), Includes: Ref. 46

1шт.

46

222-507

TUBE NUT,7/8"-18

NUT - hex., 5/8" tube

1шт.

47

222-51

ELBOW,90 Degree, 1"-18 Fem x 1/2" NPTF

ASSY. - 5/8" tube x 1/2" P.T. (See inset "D"), Includes: Ref. 48 and 49

1шт.

48

222-106

SLEEVE,5/8" Tube

- elbow, 5/8" Tube

1шт.

49

222-116

TUBE NUT,1"-18

NUT - hex., 5/8" tube

1шт.
