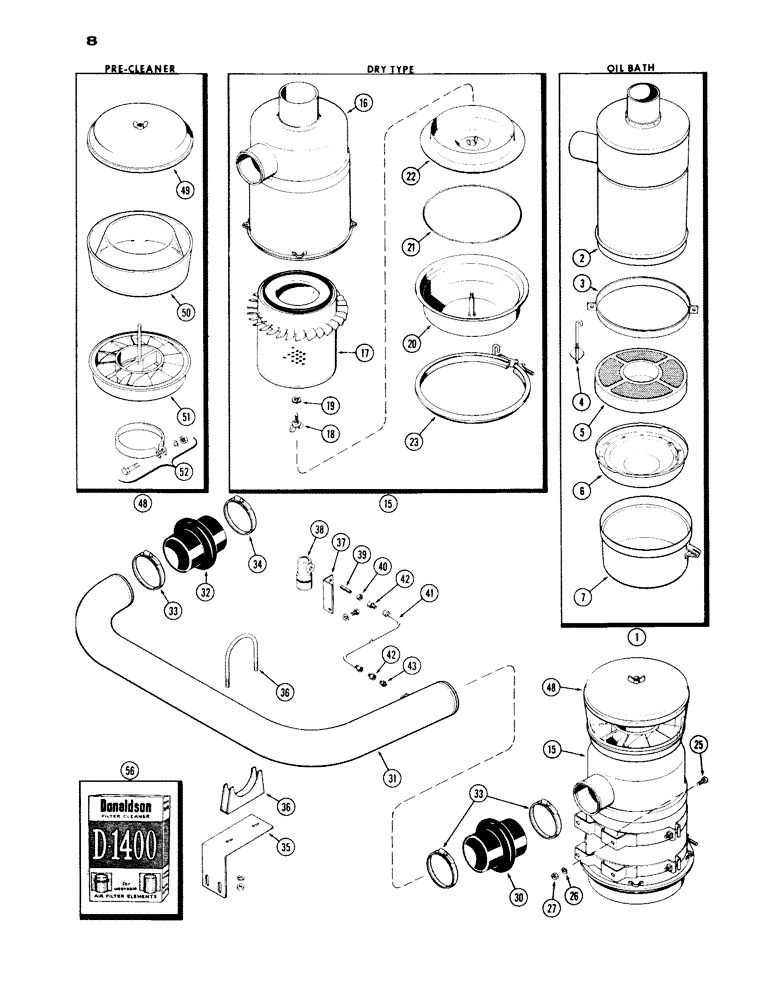

Запчасти Case IH 1200 (008) - OIL BATH AIR CLEANER SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

A56083

CLEANER ASSEMBLY - air, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - air cleaner

1шт.

3

A25206

BAND ASSY. - air cleaner, w/screw & nut

1шт.

4

A55771

HARDWARE

ROD ASSY. - cup retainer, w/wing nut

2шт.

5

A25205

ELEMENT ASSY. - air cleaner

1шт.

6

A25239

CUP ASSY. - inner oil

1шт.

7

A25238

CUP ASSY. - oil

1шт.

15

L13534

CLEANER ASSY. - air, dry type used w/ cab, Includes: Ref. 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - air cleaner, dry type used w/ cab

1шт.

17

L30937

FILTER

ELEMENT ASSY. - w/gasket, dry type air cleaner used w/ cab

1шт.

18

L30941

SCREW ASSY. - thumb, element retaining, dry type air cleaner used w/ cab

1шт.

19

L30942

GASKET - thumb screw, dry type air cleaner used w/ cab

1шт.

20

L30939

COVER

CUP - dry type air cleaner used w/ cab

1шт.

21

L30943

GASKET

- cup, dry type air cleaner used w/ cab

1шт.

22

L30938

BAFFLE ASSY. - cup, dry type air cleaner used w/ cab

1шт.

23

L30936

CLAMP

ASSY. - cup retaining, dry type air cleaner used w/ cab

1шт.

24

A56089

SUPPORT

BAND ASSY. - cup retaining, dry type air cleaner used w/ cab

1шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- band to grille (3/8 x 1-1/2" N. C. hex.), dry type air cleaner used w/ cab

4шт.

26

92-6

LOCK WASHER,3/8"

dry type air cleaner used w/ cab 3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.), dry type air cleaner used w/ cab

4шт.

L10659

CAP

- dry type air cleaner used w/ cab

1шт.

A25263

CLAMP ASSY. - cap to cleaner (not illust.), dry type air used w/ cab

1шт.

30

L10267

HOSE - adapter, air cleaner to pipe, dry type used w/ cab

1шт.

31

L13533

PIPE - air intake, dry type cleaner used w/ cab

1шт.

32

A56094

HOSE

- adapter, pipe to turbo, dry type air cleaner used w/ cab

1шт.

33

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4"), dry type air cleaner used w/ cab

3шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, dry type air cleaner used w/ cab

1шт.

35

L10268

BRACKET - air intake pipe support, dry type cleaner used w/ cab

1шт.

36

L56092

CLAMP ASSY. - intake pipe support, dry type air cleaner used w/ cab

1шт.

37

L13532

BRACKET - air filter indicator mtg., dry type cleaner used w/ cab

1шт.

38

A17652

ELECTRICAL GAUGE

INDICATOR - air filter restriction, dry type cleaner used w/ cab

1шт.

39

L13267

NIPPLE - indicator (1/8" P.T. x 1-1/2"), dry type air cleaner used w/ cab

1шт.

40

L13268

LOCK NUT

- lock, indicator to brkt. (1/8" P.T., hex), dry type air cleaner used w/ cab

1шт.

41

L13531

TUBE ASSY. - air indicator to pipe, dry type cleaner used w/ cab

1шт.

42

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

CONNECTOR (1/8" P.T.), dry type air cleaner used w/ cab

2шт.

43

L10234

X

ADAPTER ASSY. - safety, w/filter, dry type air cleaner used w/ cab

1шт.

L80150

PRE-CLEANER ATTACHMENT - air (mach. item), Includes: Ref. 48 - 52

1шт.

48

L11824

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - air, attachmnet, Includes: Ref. 49 - 51

1шт.

49

L30669

COVER

- pre-cleaner, air attachment

1шт.

50

L30671

HOUSING

BOWL - pre-cleaner (clear plastic), air attachment

1шт.

51

L30672

SLEEVE

BAFFLE - pre-cleaner base, air attachment

1шт.

52

A25263

CLAMP ASSY. - pre-cleaner mounting, air attachment

1шт.

56

A40910

CLEANER

- filter element, pre- air attachment

1шт.
