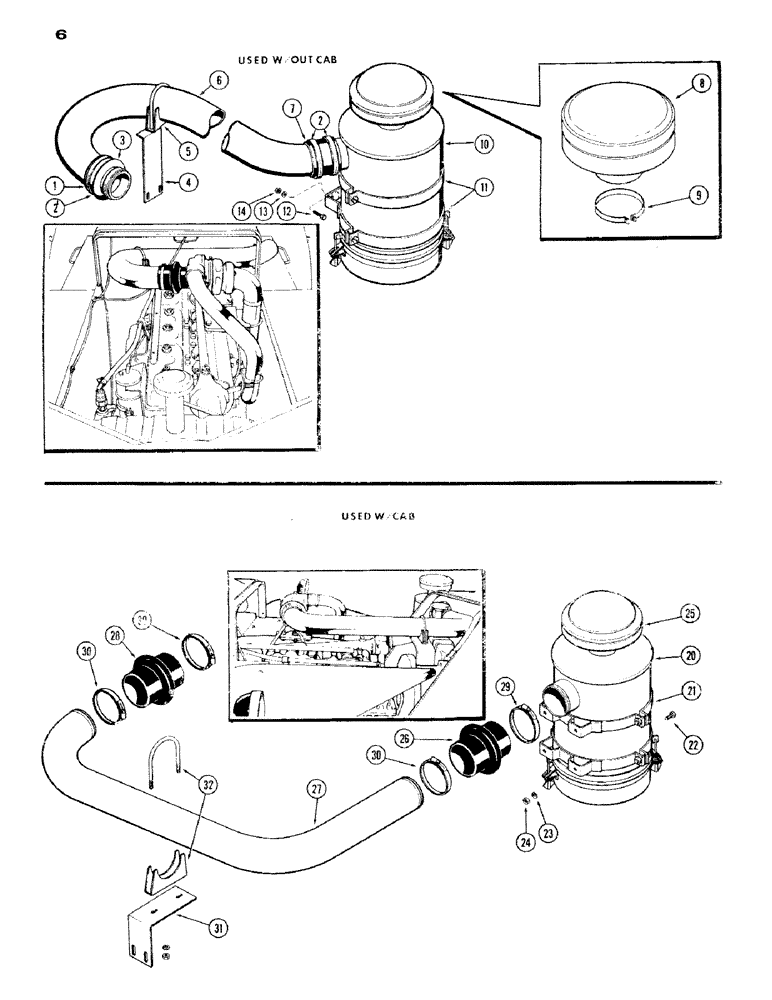

Запчасти Case IH 1200 (006) - OIL BATH AIR CLEANER SYSTEM, (451) DIESEL ENGINE, USED WITHOUT CAB (02) - ENGINE

1

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

1шт.

2

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

3шт.

3

A59094

CYLINDER HEAD GASKET

HOSE - adapter

1шт.

4

A56091

BRACKET - air intake pipe

1шт.

5

A56092

CLAMP

ASSY. - intake pipe

1шт.

6

A56090

PIPE - air intake

1шт.

7

A56093

HOSE

- air cleaner tube

1шт.

8

L10659

CAP

- air cleaner

1шт.

9

A25263

CLAMP ASSY. - air cleaner cap

1шт.

10

A56083

CLEANER ASSY. - air (Repairs, Figure 9)

1шт.

11

A56089

SUPPORT

BAND ASSY. - air cleaner mtg.

2шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N. C. hex

2шт.

20

A56083

CLEANER ASSY. - air (see figure 9), w/cab

1шт.

21

A56089

SUPPORT

BAND ASSY. - air cleaner mounting., w/cab

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- air cleaner mounting (3/8 x 1-1/2" N. C. hex), w/cab

4шт.

23

92-6

LOCK WASHER,3/8"

w/cab 3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.), w/cab

4шт.

25

L10659

CAP

- air cleaner, w/cab

1шт.

A25263

CLAMP ASSY. - cap to cleaner (not illust.), w/cab

1шт.

26

L10267

HOSE - adapter, air cleaner to pipe., w/cab

1шт.

27

L10266

PIPE - air intake, w/cab

1шт.

28

A56094

HOSE

- adapter, pipe to turbo, w/cab

1шт.

29

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4"), w/cab

1шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, w/cab

3шт.

31

L10268

BRACKET - air intake pipe, w/cab

1шт.

32

A56092

CLAMP

ASSY. - pipe to bracket, w/cab

1шт.
