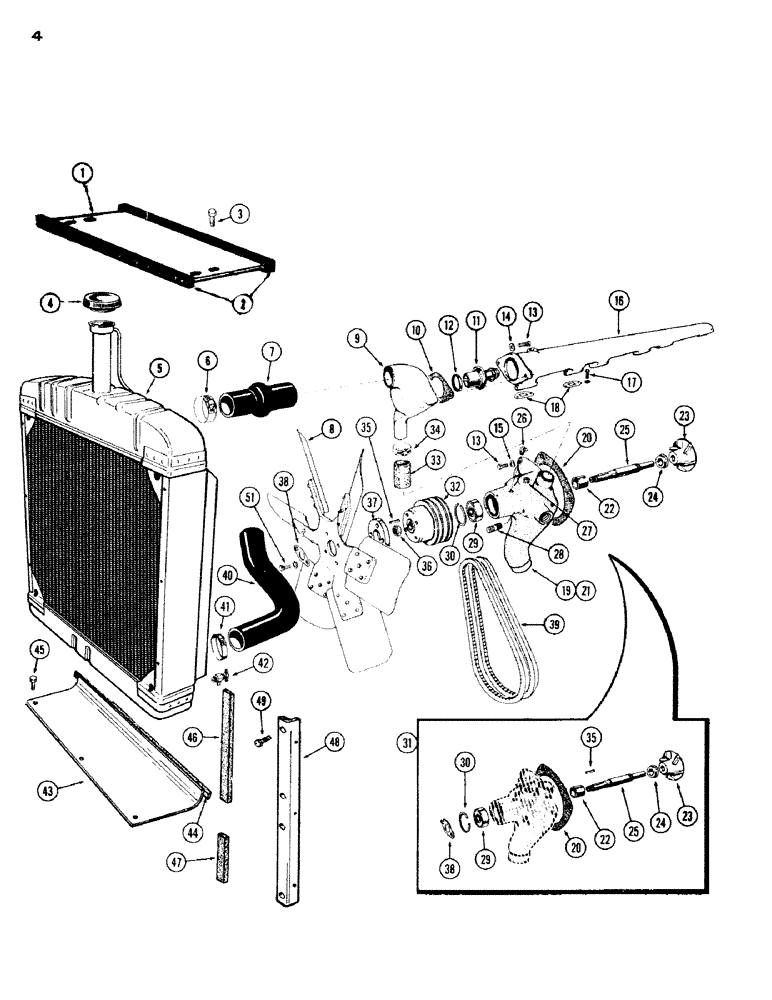

Запчасти Case IH 1200 (004) - ENGINE COOLING SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

L10247

BAFFLE ASSY. - rad., upper, Includes: Ref. 2

1шт.

2

A56191

SEAL - baffle

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

4

A21389

CAP

- radiator filler

1шт.

5

A55998

RADIATOR - engine cooling

1шт.

6

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, upper

2шт.

7

A19496

HOSE

- radiator, upper (Replaces A15489)

1шт.

8

A56087

FAN

- radiator, suction type

1шт.

9

A11420

HOUSING - thermostat

1шт.

10

A11421

GASKET

- thermostat hsg.

1шт.

11

A7634

THERMOSTAT

- engine water, 180 deg. - 195 deg. F, Includes: Ref. 12

1шт.

12

A11423

SEAL

- thermostat

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

14

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

A11419

HOSE ASSY.

MANIFOLD - water.

1шт.

17

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

18

A27905

GASKET

- water manifold

6шт.

19

A24809

PUMP

WATER PUMP ASSY. - engine, Includes: Ref. 20 - 30

1шт.

20

A57596

GASKET

- water pump

1шт.

21

A24992

THRUST WASHER

BODY ASSY. - water pump, w/bushing, Includes: Ref. 22

1шт.

22

A27900

BUSHING

- water pump.

1шт.

23

A26299

IMPELLER

- water pump.

1шт.

24

A24995

SEAL

- water pump.

1шт.

25

A23636

SHAFT

- water pump.

1шт.

26

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 67-1/2 deg. Lincoln

1шт.

27

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd. pipe

1шт.

28

A7391

STUD

- water pump hsg.

1шт.

29

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - water pump

1шт.

30

A27150

RING

- bearing ret. water pump

1шт.

31

A24180

KIT

REPAIR KIT - water pump

1шт.

32

A21454

PULLEY - fan

1шт.

33

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

by-pass #28, 1.31/2.25 Type F Worm

2шт.

35

A21075

KEY

- fan pulley

1шт.

36

A15488

NUT - fan pulley nut

1шт.

37

A15505

SPACER - fan

1шт.

38

A26707

LOCK

- fan pulley nut

1шт.

39

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , Matched, Fan pulley 53.00" L

1шт.

40

A56079

HOSE,2.25" ID x 10.13", SAE 20R4 CLASS SC

RADIATOR HOSE, , Radiator to Water Pump 2.25" ID x 10.13", SAE 20R4 CLASS SC

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, lower radiator

2шт.

42

A23655

VALVE

DRAIN COCK - radiator

1шт.

43

A56297

BAFFLE ASSY. - radiator, lower, Includes: Ref. 44

1шт.

44

A56191

SEAL - radiator baffle

1шт.

45

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5шт.

46

A56298

SEAL - radiator, upper L. H. & R. H. side

2шт.

47

A56299

SEAL - radiator, lower L. H. & R. H. side

2шт.

48

L10122

BRACKET - radiator mounting

2шт.

49

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N. F. hex.

10шт.

51

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.
