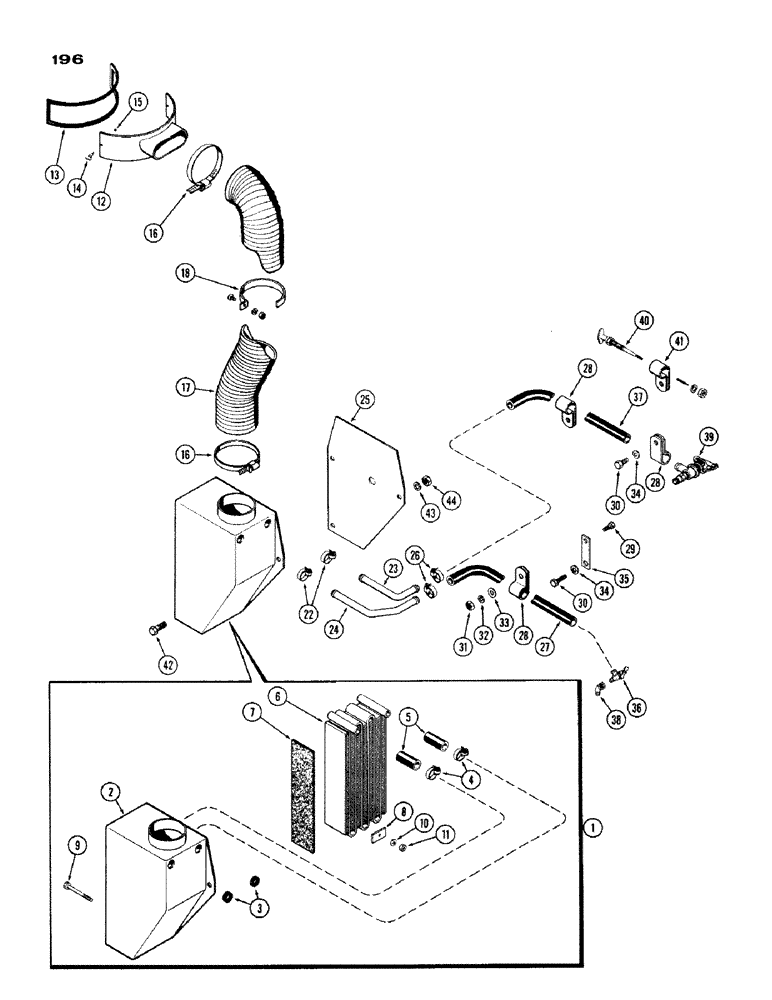

Запчасти Case IH 1200 (196) - CAB HEATER (09) - CHASSIS

L10695

HEATER ASSY. - cab, Includes: Ref. 1 - 25

1шт.

1

L30361

HEATER ASSY. - cab, Includes: Ref. 2 - 11

1шт.

2

L30360

WRAPPER - heater outer

1шт.

3

L30376

GROMMET

- tube, heater

2шт.

4

L30366

X

CLAMP - core hose

2шт.

5

L30365

HOSE - heater internal (5/8" I.D. x 2-1/2")

2шт.

6

L30362

CORE - heater

1шт.

7

L30364

GASKET - heater core

2шт.

8

L30363

STRAP - heater core retainer

2шт.

9

13-546

CAPSCREW,Hex, 5/16" - 18 x 2 7/8", Gr 5

BOLT - core mtg., 1/4 x 3-1/2" N.C. hex. hd.

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

12

L30367

ADAPTER ASSY. - hose to pressurizer unit, Includes: Ref. 13 - 15

1шт.

13

L30370

O-RING

GASKET - adapter

1шт.

14

L30368

STUD - wing, adapter to pressurizer unit

2шт.

15

L30369

WASHER - stud (split)

2шт.

16

L30375

X

CLAMP - heater hose

2шт.

17

L30374

HOSE - heater (flexible) (4" dia. x 5 ft.)

1шт.

18

L30375

X

CLIP - flexible heater hose

2шт.

22

L30366

X

CLAMP - tube hose

2шт.

23

L30373

TUBE - heater hose (approx. 8-3/8" long)

1шт.

24

L30372

TUBE - heater hose (approx. 13" long)

1шт.

25

L30371

PLATE - heater mounting

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

4шт.

27

L10692

HOSE - water pump to heater (57" long)

1шт.

28

A27256

CLAMP

- hose retaining

3шт.

29

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Clip to strap Hex, 7/16"-14 x 1 1/4", G5

1шт.

30

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Clip & strap Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

31

129-104

NUT,7/16"-14, G5

1шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

33

195-105

WASHER,7/16"

- plain, 7/16"

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

A19330

STRAP - hose and clip retaining

1шт.

36

A16764

VALVE

ASSY. - water shut-off, 90 deg.-3/8" P.T. x 5/8" hose

1шт.

37

L10693

HOSE - heater to block (77" long)

1шт.

38

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- heater hose (at water pump) (3/8" P.T., 45 deg.)

1шт.

39

L10694

VALVE ASSY. - remote control shut-off

1шт.

40

A24370

CABLE ASSY. - shut-off valve control

1шт.

41

49769

HUB

- valve control cable

1шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Heater mtg. Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

43

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
