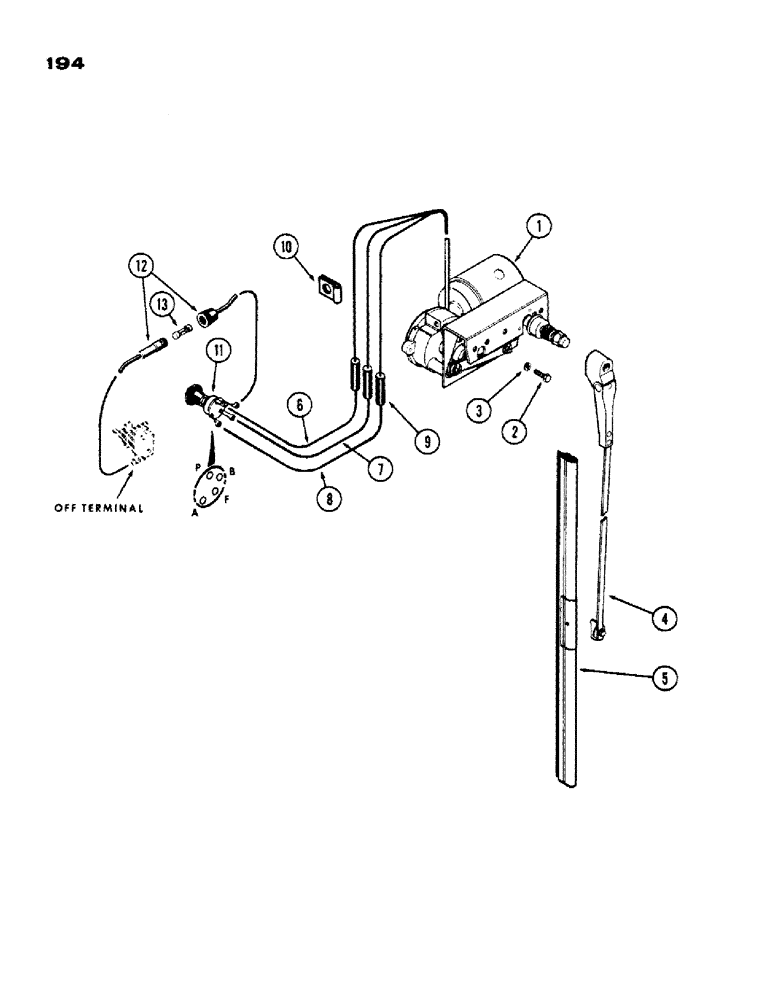

Запчасти Case IH 1200 (194) - WINDSHIELD WIPER AND WIRING (09) - CHASSIS

1

L10666

MOTOR ASSY. - wiper, w/mtg. brkt.

1шт.

2

114-9

SCREW

BOLT - motor mtg., 1/4 x 3/4" N.F. hex.

3шт.

3

192-9

WASHER - lock, 1/4"

3шт.

4

L10668

ARM ASSY. - wiper

1шт.

5

L10669

BLADE

- wiper (20" long)

1шт.

6

L10670

WIRE - switch "P" term. to motor (23" long, black)

1шт.

7

L10671

WIRE - switch "A" term. to motor (23" long, red)

1шт.

8

L10672

WIRE - switch "F" term. to motor (23" long, green)

1шт.

9

A27213

CONNECTOR - wire (single)

3шт.

10

49838

CLAMP

- wire retaining

5шт.

11

L10667

IGNITION SWITCH

SWITCH ASSY. - wiper

1шт.

13

L10674

HOLDER ASSY. - fuse, Includes: Ref. 13

1шт.

13

223-10

FUSE,10 Amp, Type 3AG

(10 AMP)

1шт.

49852

PTO SHAFT

- fuse holder (not illust.)

1шт.
