Запчасти Case IH 1200 (186) - CAB DOOR (09) - CHASSIS

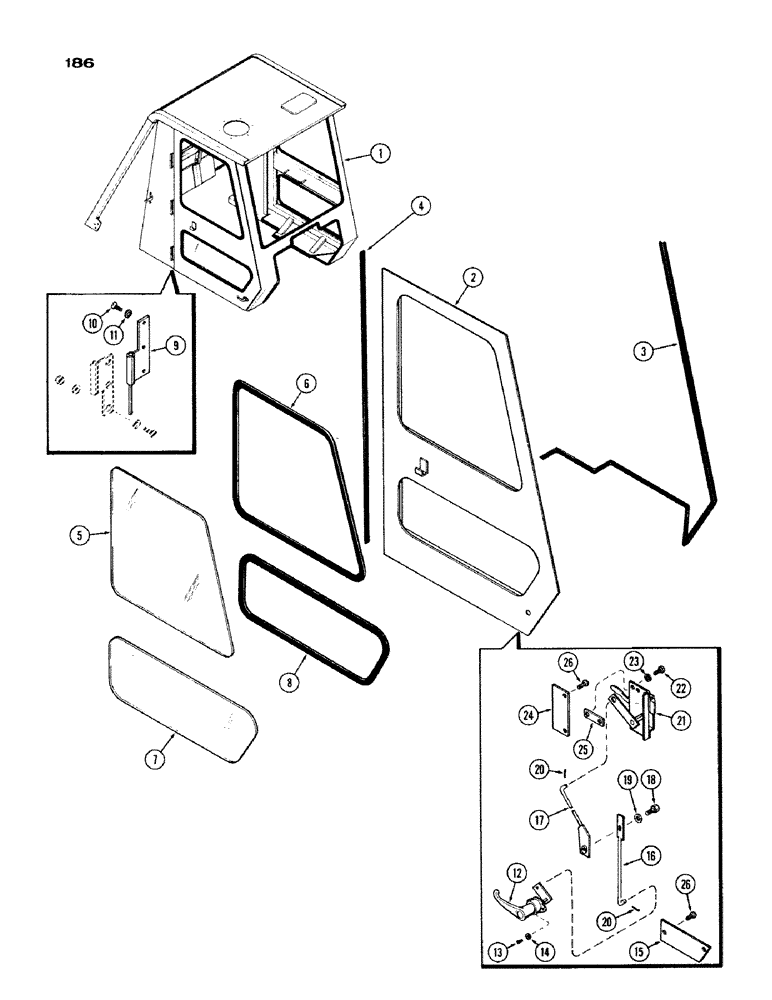

Схема запчастей Case IH 1200 - (186) - CAB DOOR (09) - CHASSIS
8
12
22
26
18
6
14
10
13
23
11
7
1
4
21
26
25
15
5
20
19
3
24
16
2
9
20
17

Артикул

Название

Примечание

Количество

1

L30065

DOOR ASSY. - cab, right hand, Includes: Ref. 2 - 26

1шт.

1

L30066

DOOR ASSY. - cab, left hand, Includes: Ref. 2 - 26

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - (Order L30065 or L30066)

1шт.

3

L30076

GASKET - front (147" long)

1шт.

4

L30096

GASKET - side (60" long)

1шт.

5

L30108

GLASS - side (60" long)

1шт.

5

L30108

GLASS - door, upper (safety, clear)

1шт.

6

L30077

MOLDING - weatherstrip (112" long)

1шт.

7

L30107

GLASS - door, lower (safety, clear)

1шт.

8

L30075

MOLDING - weatherstrip (90" long)

1шт.

9

L30126

HINGE - upper right hand (pin 3-1/4" long)

1шт.

9

L30125

HINGE - upper left hand (pin 3-1/4" long)

1шт.

9

L30124

HINGE - lower right hand (pin 3" long)

2шт.

9

L30122

HINGE - lower left hand (pin 3" long)

2шт.

10

171-206

SCREW,Flat Hd, Spin Lock, 1/4" X 3/4"

- hinge, 1/4 x 3/4" N.C., flat hd.

9шт.

11

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

9шт.

12

L30131

HANDLE ASSY. - door, exterior right hand

1шт.

12

L30130

HANDLE ASSY. - door exterior left hand

1шт.

13

179-97

SCREW - handle, #10-24 x 1/2" oval hd

2шт.

14

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

15

L30136

COVER - lower door latch

1шт.

16

L30138

ROD - lower link door latch

1шт.

17

L30139

ROD - door latch right hand upper link

15шт.

17

L30137

ROD - door latch left hand upper link

1шт.

18

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Latch rod Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

20

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , Latch rods 3/32" x 1"

2шт.

21

L30150

LATCH - door, interior right hand

1шт.

21

L30129

LATCH - door, interior left hand

1шт.

22

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- upper latch, 1/4 x 3/4" N.C., rd. hd.

4шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

24

L30128

COVER - upper door latch

1шт.

25

L30149

SHIM - upper latch

1шт.

26

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- latch covers, #10-24 x 1/2" rd. hd.

4шт.

Выбрано товаров: 34
