Запчасти Case IH 1200 (180) - P.T.O. CLUTCH (09) - CHASSIS

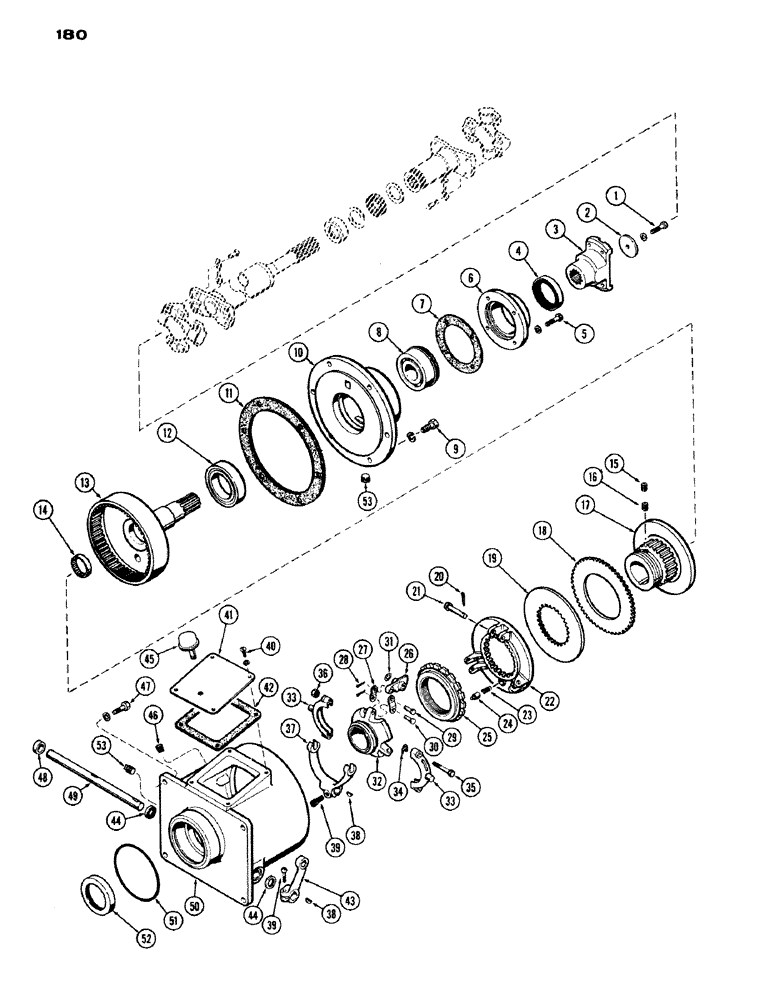

Схема запчастей Case IH 1200 - (180) - P.T.O. CLUTCH (09) - CHASSIS
6
38
37
40
26
46
49
52
27
45
31
53
23
29
9
12
42
50
10
32
53
33
17
21
24
25
43
18
51
36
33
35
2
16
3
13
47
19
1
28
39
30
48
22
5
20
38
7
44
11
44
14
8
41
4
34
15
39

Артикул

Название

Примечание

Количество

A55414

ATTACHMENT - P.T.O. (Mach. item), Includes: Ref. 1 - 53

1шт.

A55415

DRIVE & CLUTCH ASSY. - power take-off, Includes: Ref. 1 - 53

1шт.

1

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Yoke Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

2

A55421

WASHER - clutch spider shaft

1шт.

3

A55422

YOKE

- clutch shaft

1шт.

4

A55434

SEAL

- oil, spider shaft bearing

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

6

A55420

RETAINER - clutch bearing

1шт.

7

A55424

GASKET

- bearing retainer

1шт.

8

A55423

BEARING - ball, spider shaft

1шт.

9

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Carrier mounting

6шт.

10

A55419

CARRIER - clutch spider shaft

1шт.

11

A55428

GASKET - carrier to clutch housing

1шт.

12

A55426

BEARING - roller, spider shaft

1шт.

13

A55425

SHAFT - clutch spider

1шт.

14

A55427

NEEDLE BEARING

BEARING - needle, spider shaft

1шт.

A55429

CLUTCH ASSY. - power take-off, Includes: Ref. 15 - 36

1шт.

15

83-84

SET SCREW

SCREW - 1/2 x 1/4" N.C., hex. sckt. cup pt.

1шт.

16

178-282

SCREW - 1/2 x 5/8" hex. sckt. hd. dog pt.

1шт.

17

A55942

HUB - driving, clutch

1шт.

18

A22191

LARGE PLATE

PLATE - clutch, driving (Sintered)

5шт.

19

A55944

LARGE PLATE

PLATE - clutch, driven (Steel)

4шт.

20

132-44

COTTER PIN,1/8" x 1/2"

PIN - cotter, 3/32 x 7/16"

3шт.

21

A55946

PIN - clutch throwout lever

3шт.

22

A55947

PLATE - clutch pressure

1шт.

23

A55950

SPRING - clutch adj. lockpin

1шт.

24

A55949

PIN

- lock, clutch adjusting

1шт.

25

A55948

RING - clutch adjusting

1шт.

26

A55945

LEVER - clutch throwout

3шт.

27

L30421

LINK - clutch offset

6шт.

28

132-23

X

PIN - cotter - 3/32 x 7/16"

6шт.

29

A55937

PIN - clutch lever link

3шт.

30

A55938

PIN

- clutch lever link

3шт.

31

A55934

WASHER

- spring, clutch

6шт.

32

A55935

SLEEVE - clutch sliding

1шт.

33

A55939

COLLAR ASSY. - clutch (Set of 2 halves)

1шт.

34

A55941

SHIM - clutch collar

2шт.

35

14-432

BOLT,Hex, 1/4" - 28 x 2", Gr 5

- idler, 1/4 x 2" N.F. hex. hd.

2шт.

36

131-364

LOCK NUT

NUT - lock, 1/4" N.F., hex. (Gripco)

2шт.

37

L10081

FORK - clutch opening

1шт.

38

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Clutch fork & lever #15, 1/4" x 1"

2шт.

39

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

40

75-512

SCREW,Rd, 5/16" - 18 x 3/4"

- mach., 5/16 x 3/4" N. C., rd. hd.

4шт.

41

A55453

COVER - clutch housing

1шт.

42

A55454

GASKET - housing cover

1шт.

43

A55456

LEVER - clutch

1шт.

44

A40013

SEAL

- oil, clutch shaft lever

2шт.

45

A27173

BREATHER

ASSY. - clutch hsg.

1шт.

46

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

47

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

48

A55457

COLLAR - clutch lever shaft

1шт.

49

A55455

SHAFT - clutch operating

1шт.

50

A55418

HOUSING - PTO clutch

1шт.

51

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - clutch hsg. to PTO hsg.

1шт.

52

A55432

SEAL - oil, clutch housing

1шт.

53

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

2шт.

Выбрано товаров: 56
