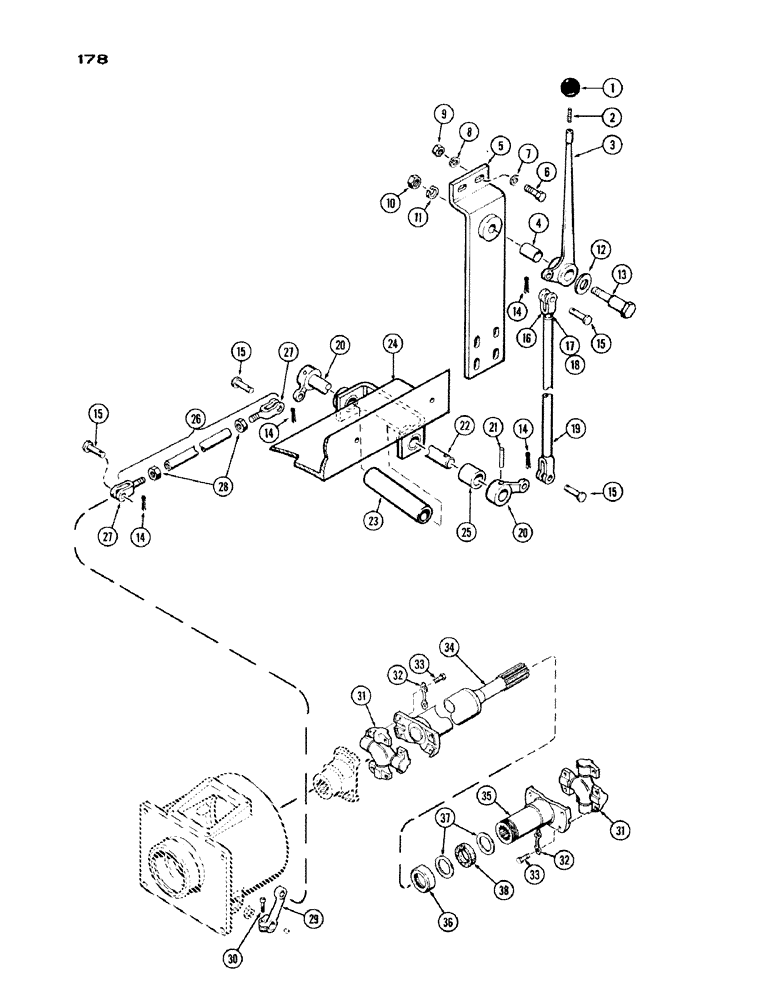

Запчасти Case IH 1200 (178) - P.T.O. CONTROLS AND DRIVE SHAFT (09) - CHASSIS

A55414M

ATTACHMENT - PTO drive & clutch (Mach. item), Includes: Ref. 1 - 38

1шт.

1

A18852

KNOB

- PTO control lever

1шт.

2

A16775

STUD

- PTO control lever knob

1шт.

3

A56115

LEVER ASSY. - clutch control PTO, Includes: Ref. 4

1шт.

4

L10083

BUSHING

- control lever

1шт.

5

A56117

SUPPORT ASSY. - PTO control lever

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

7

195-25

WASHER,3/8"

- plain, 3/8

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C., hex.

6шт.

10

25-1110

NUT,5/8"-18, G5

- 5/8" N.F., hex.

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

A56120

WASHER

- lever pin

1шт.

13

A7442

PIN - PTO control lever mounting

1шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

15

1416

PIN - clevis, 1/2" yoke end

4шт.

16

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - adj., 1/2"

1шт.

17

195-33

WASHER,1/2"

- plain, 1/2"

1шт.

18

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F., hex.

1шт.

19

A14085

ROD - PTO control lever

1шт.

20

A12115

LEVER - PTO clutch cross shaft

2шт.

21

135-360

PULLEY

PIN - groove, 1/4 x 1-3/4"

2шт.

22

A56126

SHAFT - PTO clutch cross

1шт.

23

B18238

SPACER - cross shaft

1шт.

24

A56121

SUPPORT ASSY. - cross shaft pivot, Includes: Ref. 25

1шт.

25

A31082

BUSHING

- support assembly

2шт.

26

A56130

X

TUBE ASSY. - PTO clutch control, Includes: Ref. 27 and 28

1шт.

27

A56132

FORK

YOKE - control tube

2шт.

28

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam 1/2" N.F., hex.

2шт.

29

L10081

LEVER - clutch

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

A55565

SHAFT ASSY. - PTO drive, Includes: Ref. 31 - 38

1шт.

31

A40200

U-JOINT SPIDER

SPIDER ASSY. - drive shaft

2шт.

32

A17297

PLATE

LOCK - bolt, drive shaft

4шт.

33

A17298

BOLT,Hex, 3/8" x 1 11/16"

- drive, Serial Range: shaft-spider

8шт.

35

A40201

TUBE ASSY. - drive shaft

1шт.

35

A18381

YOKE

ASSY. - drive shaft slip

1шт.

36

A18388

CAP

RETAINER - washer & felt

1шт.

37

A18387

WASHER

- felt retainer

2шт.

38

A18390

WASHER

- slip yoke felt

1шт.
