Запчасти Case IH 1200 (174) - THREE POINT HITCH ASSEMBLY (09) - CHASSIS

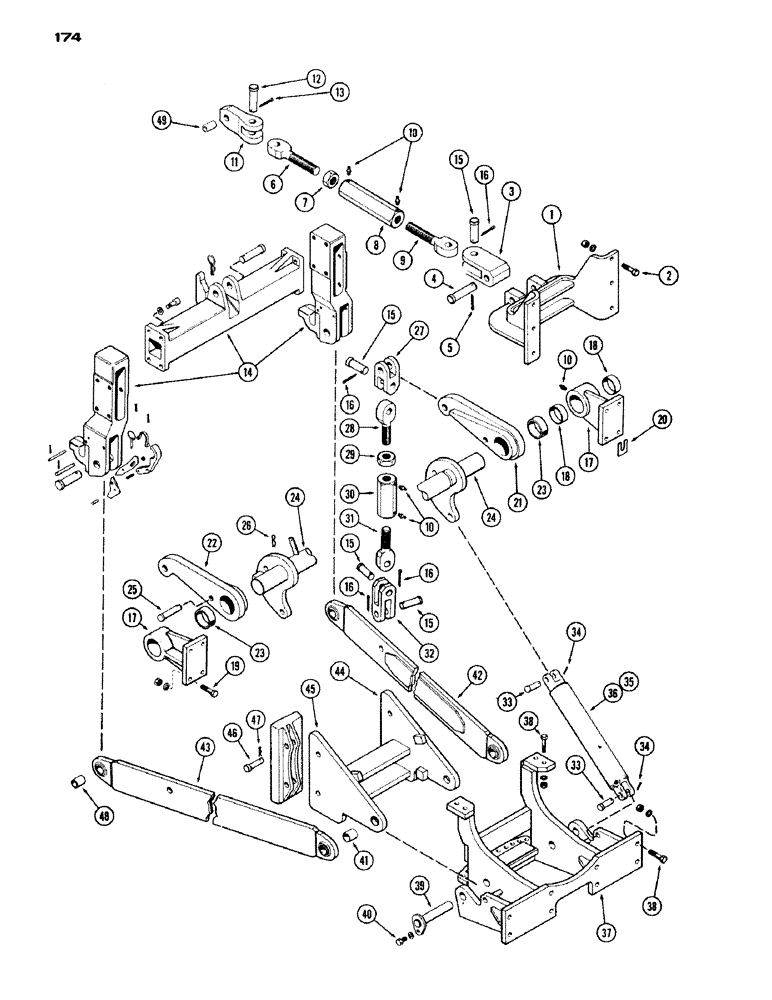

Схема запчастей Case IH 1200 - (174) - THREE POINT HITCH ASSEMBLY (09) - CHASSIS
11
17
22
23
16
46
38
26
38
29
21
7
24
15
33
36
18
47
10
41
10
19
18
49
16
15
48
25
5
14
45
8
16
34
1
34
27
20
31
12
33
4
37
43
8
40
15
44
17
32
2
28
15
39
23
30
3
42
35
13
10
16
6
24

Артикул

Название

Примечание

Количество

1

A56355

SUPPORT - upper link point

1шт.

2

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Support Hex, 3/4"-10 x 2 3/4", G5

6шт.

3

A56391

SWIVEL - upper link

1шт.

4

A56392

PIN - upper link

1шт.

5

A56393

PIN

- cotter, upper link pin

1шт.

6

A56396

ROD - upper adjusting hitch link

1шт.

7

129-154

NUT,Jam, 1 1/2"-6, G5

- jam, 1-1/2" N.C. hex.

1шт.

8

A56395

BODY - upper link

1шт.

9

A56397

ROD - hitch inner adjusting link

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

6шт.

11

A56400

SWIVEL - implement

6шт.

12

A56401

PIN

- implement swivel

1шт.

13

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

14

L10171

COUPLER ASSY. - hitch (Repairs, F. 177)

1шт.

15

A56382

PIN - hitch lift

9шт.

16

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), , Lift pin 3/16" x 2"

9шт.

17

L10687

STAND ASSY. - brg., hitch L.H. & R.H., Includes: Ref. 18

2шт.

18

A56365

BUSHING - bearing stand.

2шт.

19

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Stand mtg. Hex, 3/4"-10 x 3", G5

8шт.

20

A56516

SHIM,.030" Thk

Spacer, Bearing stand .030" Thk

1шт.

21

A56377

ARM ASSY. - upper link L.H., Includes: Ref. 23

1шт.

22

A56376

ARM ASSY. - upper link R.H., Includes: Ref. 23

1шт.

23

A56365

BUSHING - link arm

2шт.

24

A56366

SHAFT - hitch relay

1шт.

25

A56374

PIN - lock, upper link arm

2шт.

26

A56375

COTTER PIN

PIN - cotter, lock pin

2шт.

27

A56381

SWIVEL - lift link

2шт.

28

A56386

ROD - lift link adjusting

2шт.

29

129-154

NUT,Jam, 1 1/2"-6, G5

- jam, 1-1/2" N.C. hex.

2шт.

30

A56385

BODY - lift link

2шт.

31

A10015

SWIVEL - draft arm to lift link

2шт.

33

A56420

PIN - clevis, cylinder mounting

4шт.

34

132-75

HARDWARE,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

35

L11545

CYLINDER ASSY. - hitch lift R.H. (Repairs, F. 173)

1шт.

36

A56414

CYLINDER ASSY. - hitch lift L.H. (Reapirs, F. 173)

1шт.

37

A55122

SUPPORT - drawbar & hitch

1шт.

38

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Support mtg. Hex, 3/4"-10 x 3", G5

12шт.

39

L10252

PIN - draft arm pivot

2шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Pin Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

41

L10006

SPACER - draft arm

2шт.

42

L10001

ARM ASSY. - draft L.H.

1шт.

43

L10000

ARM ASSY. - draft R.H.

1шт.

44

L10008

BRACKETR - draft arm swap stop.

1шт.

45

L10013

STOP - draft arm sway

2шт.

46

L10014

PIN - draft stop

4шт.

47

A56375

COTTER PIN

PIN - hair cotter

4шт.

48

L10463

BUSHING

ADAPTER - lower hitch pin L.H. & R.H (to change from category 3 to category 2)

2шт.

49

L10462

BUSHING

ADAPTER - upper hitch pin (to change from category 3 to category 2)

1шт.

Выбрано товаров: 48
