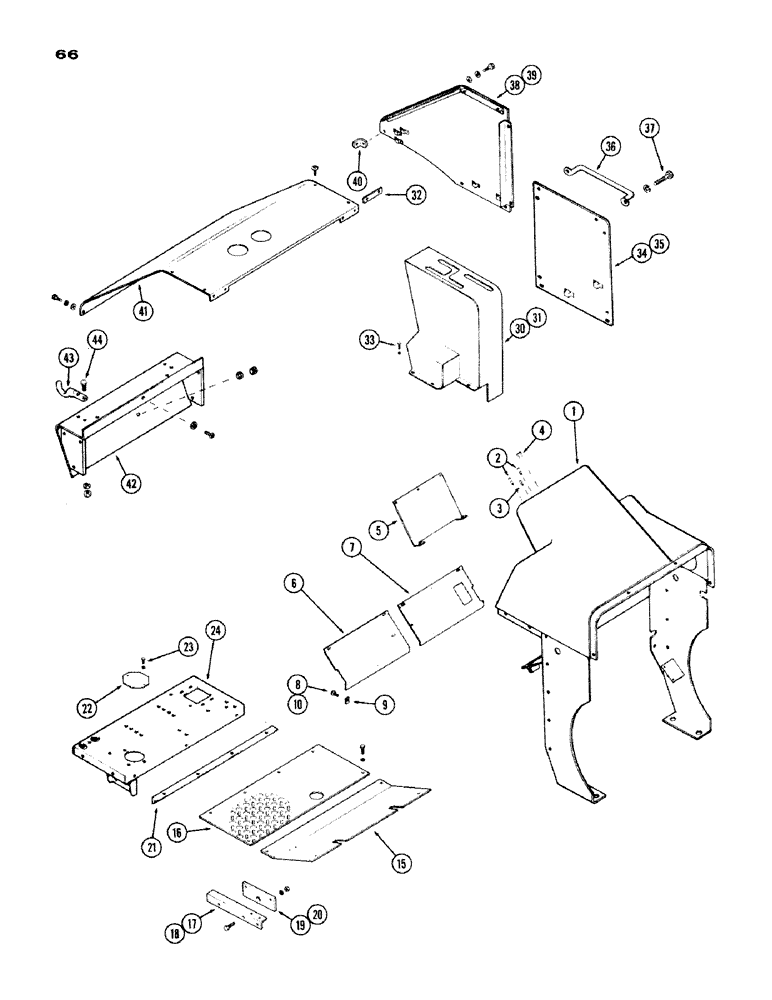

Запчасти Case IH 1200 (066) - COCKPIT (09) - CHASSIS

1

L10593

COCKPIT ASSY. - operator's, Includes: Ref. 2 - 4

1шт.

2

A56509

STOP - hand throttle

2шт.

3

A56508

STOP - hand throttle

1шт.

4

A55643

BEARING - throttle shaft & rear strg.

2шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cockpit mtg., 3/8 x 1-1/2" N.C. hex. nd.

3шт.

5

L10604

PLATE - cockpit cover

1шт.

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- plate mtg., 1/4 x 1/2" N.C. Truss hd.

5шт.

6

L10260

DEFLECTOR - cockpit R.H. air

1шт.

7

L10258

DEFLECTOR - cockpit L.H. air

1шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- deflector, #10 x 1/2" N.C. rd. hd.

4шт.

9

L10748

CLIP - deflector

3шт.

10

187-1011

SCREW - clip, 1/4 x 3/8" pan hd. self tapping

3шт.

15

L10518

PLATE - platform front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Platform mtg Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Platform mtg Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

L10517

PLATE - platform middle

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate mtg Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

17

L10514

ANGLE - L.H. clutch & brake pedal mounting

1шт.

18

L10515

ANGLE - R.H. clutch & brake pedal mounting

1шт.

19

L10516

SUPPORT - clutch & brake pedal shift

2шт.

20

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16 x 1/2" hex. socket hd.

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Angle mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Angle & support mounting Hex, 1/2"-13 x 1 3/4", G5

4шт.

21

A55578

ANGLE - rear platform support

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Angle mtg. Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Angle mtg. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

A55572

COVER - master brake cylinder inspection

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Cover mtg Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

24

L10697

PLATFORM - rear

1шт.

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Platform mounting Hex, 1/2"-13 x 3/4", G5, Full Thd

4шт.

30

A55510

CONSOLE ASSY. - cockpit R.H.

1шт.

31

L10700

CONSOLE ASSY. - cockpit L.H.

1шт.

32

L10072

BAR - tie, tank, Serial Range: cover-console

2шт.

33

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Console & bar mtg. Hex, 1/4"-20 x 5/8", G5, Full Thd

10шт.

34

L10240

COVER ASSY. - console R.H.

1шт.

35

L10241

COVER ASSY. - console L.H.

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- cover mtg., 1/4 x 5/8" N.C. pan hd., console

8шт.

36

A56109

HANDLE - tractor mounting, console

2шт.

37

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- handle mtg., 5/16 x 1" N.C. rd. hd., console

4шт.

38

L10243

PLATE ASSY. - rear console & tank cover R.H.

1шт.

39

L10244

PLATE ASSY. - rear console & tank cover L.H.

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- plate mtg., 1/4 x 5/8" N.C. rd. hd., console

4шт.

40

A16832

ANGLE

CLIP - corner, console and tank cover

2шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clip mtg., Console Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

41

A55528

COVER - fuel tank, console

1шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- cover mtg., 1/4 x 5/8" N.C. rd. hd., console

10шт.

42

L10703

COVER - rear lower tank, console

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- cover mtg., 3/8 x 1" N.C. hex. hd., console

6шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- cover mtg., 1/4 x 5/8" N.C. rd. hd., console

1шт.

43

A56501

HANGER - portable hyd. cylinder, console

2шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Hanger mtg., console Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.
