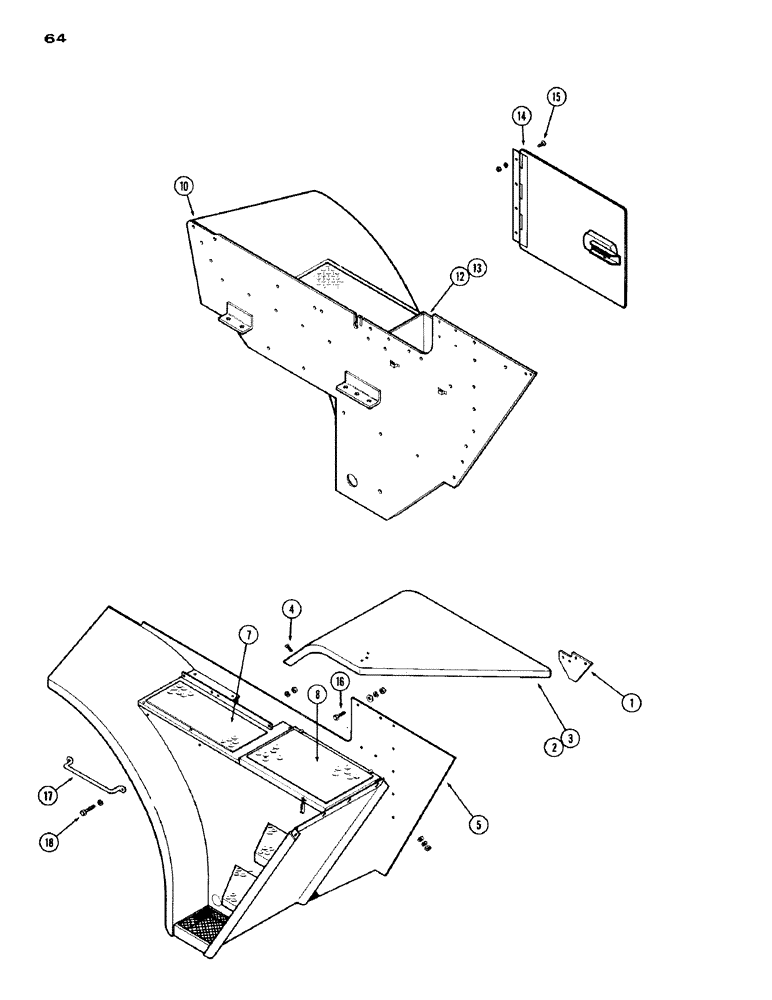

Запчасти Case IH 1200 (064) - FENDERS (09) - CHASSIS

1

L10121

BRACKET - hood & fender L.H. & R.H.

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- bracket, 3/8 x 1" N.F. hex.

10шт.

2

A56492

FENDER - top front R.H.

1шт.

3

A56493

FENDER - top front L.H.

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Fender mtg. Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Fender mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

4

173-252

SCREW,Sl Rnd Hd, 5/16" - 18 x 5/8"

- fender mtg., 5/16 x 5/8" rd. hd. mach.

10шт.

5

L10591

SIDE & FENDER ASSY. - tractor R.H., Includes: Ref. 7 - 9

1шт.

7

L30177

COVER - rear top

1шт.

73-58

SCREW - cover mtg., 5/16 x 1/2" N.C. flat hd. mach.

6шт.

8

L30178

COVER - oil tank compartment

1шт.

9

L10473

LATCH

FASTENER - toggle, cover

1шт.

175-299

SCREW - toggle, #10 x 5/8" N.F. Truss hd.

2шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

205-72

HOLE PLUG BUTTON,3"

PLUG - button, diameter 3"

1шт.

10

L10592

SIDE & FENDER ASSY. - tractor L.H., Includes: Ref. 12 - 15

1шт.

12

L30179

COVER - battery compartment top

1шт.

13

L10473

LATCH

FASTENER - toggle

1шт.

175-299

SCREW - lock, #10 ext. Shakeproof

2шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

14

L30176

DOOR ASSY. - tool compartment

1шт.

15

77-412

SCREW

- door mtg., 1/4 x 3/4" N.C. Truss hd.

4шт.

205-72

HOLE PLUG BUTTON,3"

PLUG - button, hole diameter 3"

1шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Side mtg. Hex, 3/8"-16 x 1 1/4", G5, Full Thd

14шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Side mounting Hex, 1/2"-13 x 1 3/4", G5

18шт.

17

A56109

HANDLE - tractor mounting

4шт.

18

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- handle mtg., 5/16 x 1" N.C. Pan hd.

8шт.
