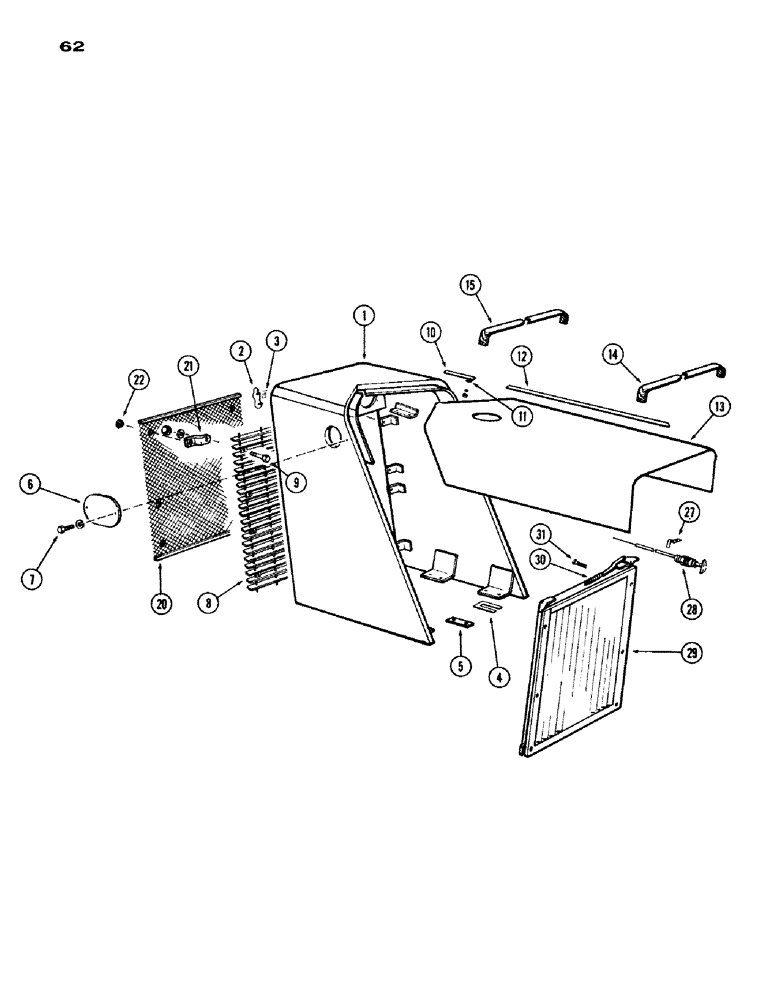

Запчасти Case IH 1200 (062) - GRILLE HOUSING AND HOOD (09) - CHASSIS

1

L10049

FRAME ASSY. - radiator & grille

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Frame mounting Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- frame mtg., 3/8 x 1-1/2" N.C. hex. hd.

2шт.

2

A24526

MEDALLION - frame frt. plate (Case Eagle)

1шт.

3

131-138

PUSH-ON NUT

- medallion mtg., 1/4" push on type

1шт.

4

A56516

SHIM,.030" Thk

Grille radiator frame .030" Thk

4шт.

5

L11399

PLATE - grille frame mounting

2шт.

6

L10249

COVER - air cleaner hole (used w/out cab)

1шт.

7

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- cover mtg., 1/4 x 1/2" N.C. rd. hd. mach.

2шт.

8

L10686

GRATING - radiator grille

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Grating mtg. Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

10

A56113

TRIM - hood moulding (short)

1шт.

11

A11459

BOLT

- hood trim retaining

5шт.

12

A56112

TRIM - hood moulding (Long)

1шт.

13

A55154

HOOD - engine

1шт.

164-122

SCREW - hood mtg., 3/8 x 1/2" N.F. button hd.

6шт.

164-551

HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1"

SCREW - hood mtg., 3/8 x 1" N.C. button hd.

2шт.

14

L11785

SHIM

PAD - hood, rear, anti-squeak

1шт.

15

L11786

PAD - hood, front, anti-squeak

2шт.

L80028

SCREEN ATTACHMENT - radiator (Mach. Attach.), Includes: Ref. 20 - 22

1шт.

20

A56542

SCREEN ASSY. - radiator

1шт.

21

A56544

BRACKET

- screen mounting, radiator

6шт.

22

A56545

FASTENER

- screen, radiator

6шт.

27

51200321

CLAMP

CLIP - shutter control, radiator

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Radiator shutter Hex, 1/2"-13 x 2", G5

1шт.

28

A55413

CONTROL ASSY. - shutter, radiator

1шт.

29

A56437

SHUTTER ASSY. - radiator, Includes: Ref. 30

1шт.

30

A9909

SPRING - shutter lever tension, radiator

1шт.

31

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Shutter mtg., Radiator Hex, 5/16"-24 x 3/4", G5, Full Thd

8шт.
