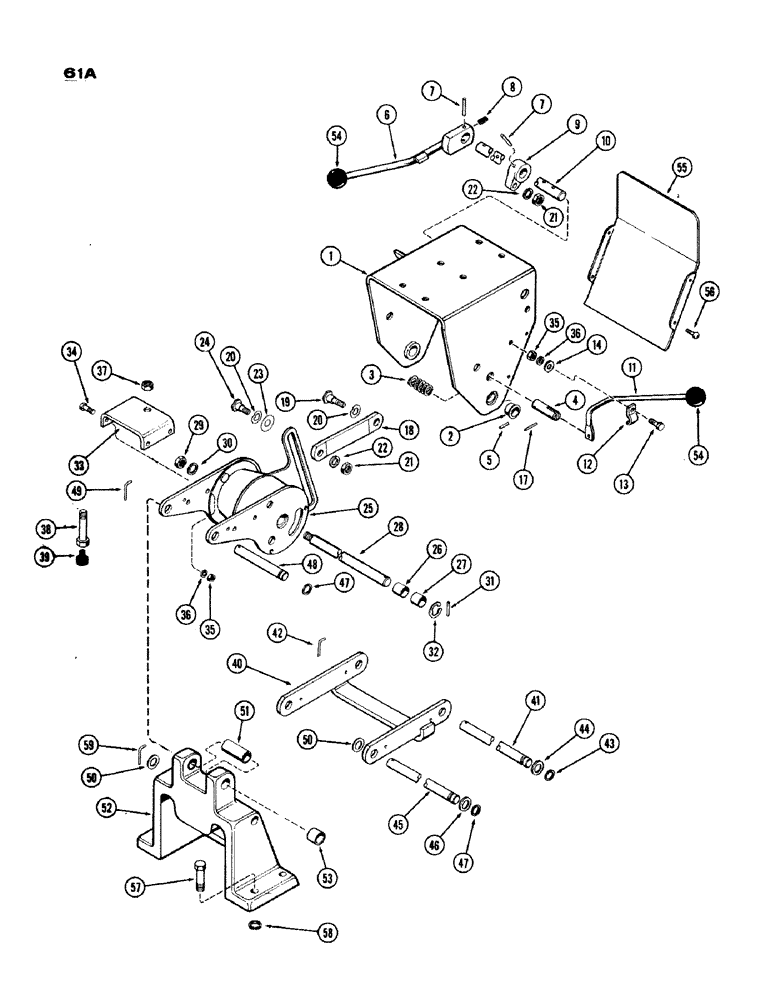

Запчасти Case IH 1200 (061) - SEAT SUSPENSION, WITHOUT FLANGED BUSHINGS, USED PRIOR TO TRACTOR SERIAL NUMBER 8339332 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
A34598
X
SEAT MTG. ASSY. - operator's, Includes: Ref. 1 - 44
1шт.
1
A34502
X
SADDLE ASSY. - seat mounting (Use A57784), Includes: Ref. 2 - 5
1шт.
2
A34503
X
BUSHING - parallel link (Use A57713)
2шт.
3
A23969
SPRING
- upstop & lock rod
1шт.
4
A23967
ROD
- seat lock cover
1шт.
5
138-59
LOCK PIN,1/8" x 7/8", Slotted
PIN, 1/8" x 7/8", Slotted
1шт.
6
A32547
LEVER - seat adjusting
1шт.
7
138-202
LOCK PIN,1/2" x 1 3/8", Slotted
PIN - spirol, 3/16 x 1-1/4"
4шт.
8
A9478
SPRING
- hand lever tension (Use A23646)
1шт.
9
A23957
LEVER - seat adjusting
1шт.
10
A32549
SHAFT - adjusting lever cross
1шт.
11
A32546
LEVER - seat lock
1шт.
12
A24014
CLIP - lock lever retainer
1шт.
13
14-412
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd
- clip, 1/4 x 3/4" N.F. hex. hd.
1шт.
14
95-4
WASHER,1/4"
- plain, 5/16 x 3/4 x 1/16"
1шт.
17
138-69
LOCK PIN,5/32" x 1/2", Slotted
Pin, 5/32" x 1/2", Slotted
1шт.
18
A23962
LINK - seat adjusitng
1шт.
19
A23964
BOLT - shoulder, adj. pivot front
1шт.
20
A23963
WASHER - tension, pivot bolt
2шт.
21
25-116
NUT,Hex, 3/8"-24, G5
- pivot bolt, 3/8" N.F. hex.
2шт.
22
92-6
LOCK WASHER,3/8"
2шт.
23
A30752
WASHER
- rear pivot bolt, 17/32 x 1-1/16 x 1/32"
1шт.
24
A27277
STEP BOLT
BOLT - shoulder, adj. pivot rear
1шт.
25
A34676
DIFFERENTIAL ASSY
ARM ASSY. - torsion spring, Includes: Ref. 26
1шт.
26
A27793
BUSHING
- torsion pin, 5/8 x 3/4 x 3/4" (also A57709)
2шт.
27
A23966
SPACER
- torsion arm centering
2шт.
28
A23965
BOLT
- torsion arm
1шт.
29
25-158
JAM NUT,Jam, 1/2"-20, G5
- torsion bolt, 1/2" N.F. hex. jam
1шт.
30
92-8
LOCK WASHER,1/2"
1шт.
31
138-94
LOCK PIN,3/16" x 7/8", Slotted
PIN, 3/16" x 7/8", Slotted
1шт.
32
A27811
CIRCLIP,#X74, .616" Dia, E-Type
Ring, Retaining, , arm spacer #X74, .616" Dia, E-Type
2шт.
33
A23975
BRACE - mounting arm cross
1шт.
34
14-414
BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd
- cross brace, 1/4 x 7/8" N.F. hex.
4шт.
35
25-114
NUT,1/4"-28, G5
- clip & brace bolt, 1/4" N.F. hex.
5шт.
36
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
37
25-108
NUT,1/2"-13, G5
- bumper bolt, 1/2" N.C. hex.
1шт.
38
A33741
BOLT
- seat bumper
1шт.
39
A24372
BUMPER - seat (Rubber)
1шт.
40
A34512
X
LINK - parallel (Use 1-A57722 and 2-A57725)
1шт.
41
A34515
X
PIN - parallel link (Use A57725)
1шт.
42
A34516
PIN
- lock, parallel pin
1шт.
43
A26828
RING
- snap, parallel pin
1шт.
45
A34515
X
PIN - parallel link mounting (Use A57725)
1шт.
47
A26828
RING
- snap, pin retaining
3шт.
48
A23976
PIN
- torsion arm pivot
1шт.
49
A27275
PIN - lock, pivot pin
1шт.
50
195-41
WASHER,5/8"
2шт.
51
A24490
SPACER
- seat support
1шт.
52
A32877
SUPPORT ASSY. - seat & suspension, Includes: Ref. 53
1шт.
53
A27793
BUSHING
- support pin (Use A57709)
2шт.
54
A23885
KNOB
BALL - hand lever
2шт.
55
A23977
COVER - suspension saddle
1шт.
56
187-1108
SCREW - cover, #8 x 3/8" N.C. pan. hd.
4шт.
57
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- support, 1/2 x 1-3/4" N.C. hex. hd.
4шт.
58
92-8
LOCK WASHER,1/2"
4шт.
59
A34516
PIN
- lock, link mounting
1шт.
Выбрано товаров: 58
