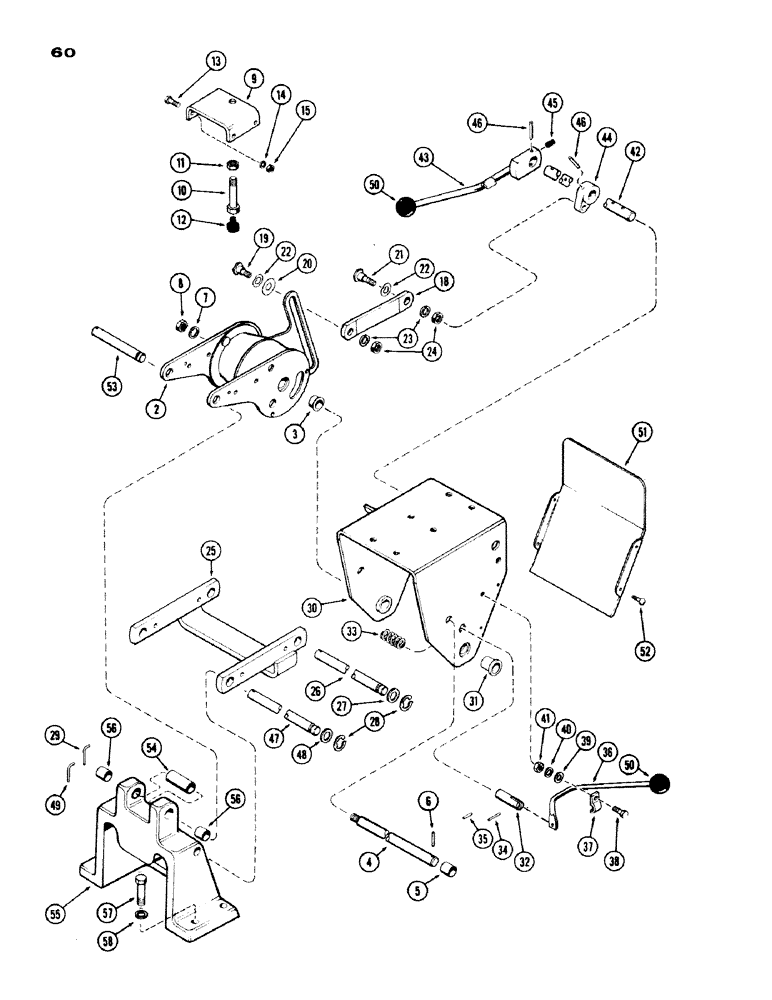

Запчасти Case IH 1200 (060) - SEAT SUSPENSION, WITH FLANGED BUSHINGS, 1ST USED TRACTOR SERIAL NUMBER 8339332 (09) - CHASSIS

A57726

SUSPENSION

SEAT SUSPENSION ASSY. - (not illust.), Includes: Ref. 2 - 46

1шт.

2

A57714

ARM

ASSY. - torsion spring, Includes: Ref. 3

1шт.

3

A57717

BUSHING

- flanged (5/8" long)

2шт.

4

A23865

PUMP

BOLT - torsion spring

1шт.

5

A57721

SPACER

- centering, 5/8 x 27/32 x 31/32"

2шт.

6

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex., jam

1шт.

9

A57720

BRACE - cross, seat mounting

1шт.

10

A33741

BOLT

- seat bumper

1шт.

11

25-108

NUT,1/2"-13, G5

- bumber bolt, 1/2" N.C. hex.

1шт.

12

A24372

BUMPER - seat (rubber)

1шт.

13

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- brace, 3/8 x 1" N.F. hex.

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

18

A23962

LINK - seat adjusting

1шт.

19

A27277

STEP BOLT

BOLT - shoulder, link, rear, 3/8 x 1-1/4" N.F.

1шт.

20

A30752

WASHER

- rear link bolt, 17/32 x 1-1/16 x 1/32"

1шт.

21

A23964

BOLT - shoulder, link, front, 3/8 x 1-7/16" N.F.

1шт.

22

A23963

WASHER - bolt tension (spring type)

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

25

A57722

LINK

- parallel

1шт.

26

A57725

PIN

- parallel link (8-19/32" long)

1шт.

27

A7915

SHIM,.0359" Thk

Spacer, 21/32" x 1-1/8" x 20 ga. .0359" Thk

2шт.

28

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, , parallel link pins #X74, .616" Dia, E-Type

2шт.

29

A34516

PIN

- lock, parallel link

1шт.

30

A57784

SADDLE

ASSY. - seat mounting, Includes: Ref. 31 - 34

1шт.

31

A57713

BUSHING

- flanged (1/2" long)

2шт.

32

A23967

ROD

- lever lock

1шт.

33

A23969

SPRING

- lock lever rod

1шт.

34

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Lever to rod 1/8" x 7/8", Slotted

1шт.

35

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, , rod retaining 5/32" x 1/2", Slotted

1шт.

36

A32546

LEVER - seat lock

1шт.

37

A24014

CLIP - lever seat

1шт.

38

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip, 1/4 x 3/4" N.F. hex.

1шт.

39

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

42

A32549

SHAFT - cross, adjusting lever

1шт.

43

A23957

LEVER - seat adjusting link

1шт.

44

A32547

LEVER - seat adjusting, hand

1шт.

45

A9478

SPRING

- hand adj. lever (Use A23646)

1шт.

46

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

47

A57725

PIN

- parallel long (8-19/32" long)

1шт.

48

A7915

SHIM,.0359" Thk

Spacer, 21/32" x 1-1/8" x 20 ga. .0359" Thk

2шт.

49

A34516

PIN

- lock, pivot

2шт.

50

A23885

KNOB

BALL - levers

2шт.

51

A23977

COVER - saddle

1шт.

52

187-1108

SCREW - cover, #8-32 x 3/8" self-tapping

4шт.

53

A23976

PIN

- pivot, torsion arm

1шт.

54

A24490

SPACER

- arm, 11/16 x 3/4 x 2-1/8"

1шт.

55

A57786

SUPPORT ASSY. - seat, Includes: Ref. 56

1шт.

56

A57709

BUSHING

- pivot pin, 5/8 x 3/4 x 3/4"

2шт.

57

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- support, 1/2 x 1-3/4" N.C. hex.

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.
