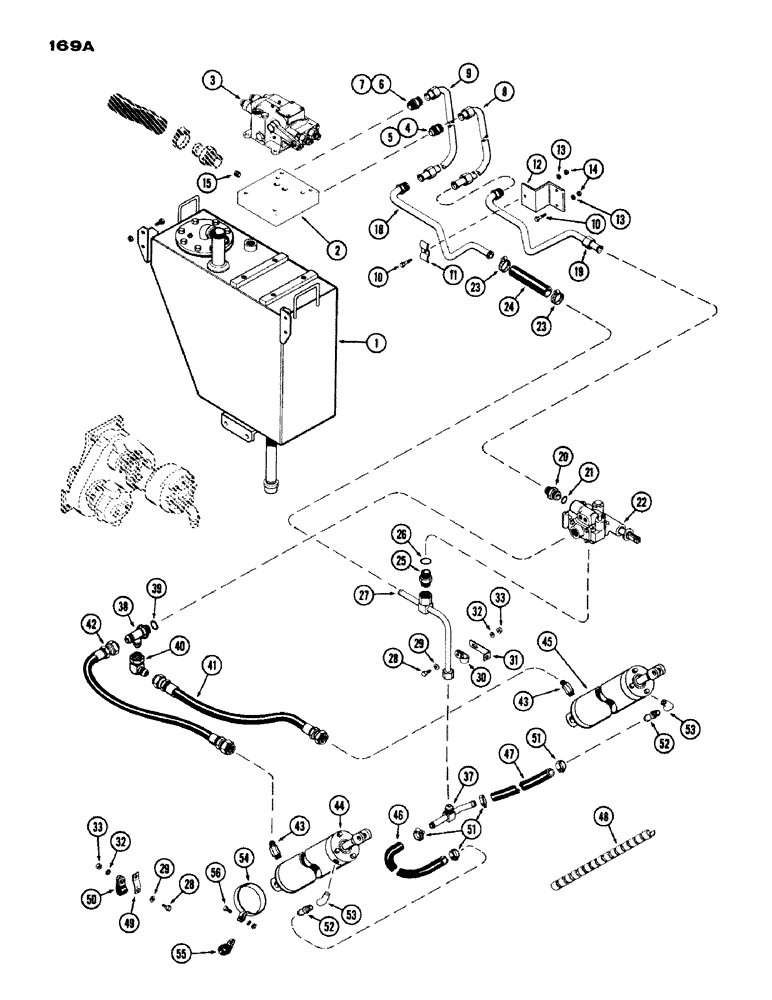

Запчасти Case IH 1200 (169A) - THREE POINT HITCH HYDRAULIC SYSTEM, FIRST USED TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

TANK ASSY. - hyd. oil, (Repairs, Figure 151B)

1шт.

2

L12397

BLOCK - valve mounting

1шт.

3

A34896

VALVE ASSY. - remote hyd., (Repairs, Figure 153B)

1шт.

4

218-5067

HYD CONNECTOR,1-3/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

FITTING ASSY. - connector, (7/8" O.D. tube), Includes: Ref. 5

1шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - fitting, (1-3/64 x 1-9/32 x 7/64")

1шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING ASSY - connector, (1" O.D. tube), Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - fitting, (1-11/64 x 1-13/32 x 7/64")

1шт.

8

L12388

TUBE - draft, control valve pressure-upper

1шт.

9

L12380

TUBE - draft, control valve return-upper

1шт.

Part of O-Ring and valve seal repair kit P/N A25259

1шт.

10

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 x 1-1/2" N.C.

3шт.

Part of O-Ring and valve seal repair kit P/N A25259

1шт.

11

R15257

CLAMP

- draft control tube

1шт.

Part of O-Ring and valve seal repair kit P/N A25259

1шт.

12

L12386

BRACKET - tube support

1шт.

13

92-5

LOCK WASHER,5/16"

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex., (5/16" N.C.)

3шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, (1/2" P.T., hex. sckt. hd.) (insert plug into valve mtg. block when 3 point hitch is to be used)

1шт.

18

L12389

TUBE - draft, control valve return

1шт.

19

L12390

TUBE - draft, control valve pressure

1шт.

20

218-5067

HYD CONNECTOR,1-3/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

FITTING ASSY. - connector, (7/8" O.D. tube), Includes: Ref. 21

1шт.

21

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - fitting, (1-3/64 x 1-9/32 x 7/64")

1шт.

22

L10043

VALVE

ASSY. - depth & position, (Repairs, Figure 171)

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, (1-3/16" to 1-3/4")

2шт.

24

L12374

HOSE - draft, valve return

1шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING ASSY - connector, (1" O.D. tube), Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - fitting, (1-11/64 x 1-13/32 x 7/64")

1шт.

27

L11546

MANIFOLD ASSY. - upper hydraulic return

1шт.

28

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

29

195-103

WASHER,5/16"

- plain, (3/8" I.D. x 7/8" O.D.)

2шт.

30

51200329

CLIP

CLAMP - manifold, Serial Range: tube-bracket

1шт.

31

L11547

BRACKET - return manifold retainer

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

2шт.

37

L11548

MANIFOLD ASSY. - lower hydraulic return

1шт.

38

A56354

TEE ASSY. - valve to cylinder pressure hose

1шт.

39

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

ELBOW - swivel, 90 deg.

1шт.

41

A56352

HOSE - valve to R.H. hitch cylinder

1шт.

42

A56353

HOSE - valve to L.H. hitch cylinder

1шт.

43

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- (3/4" tube x 1/2" P.T. x 45 deg.)

2шт.

44

A56414

CYLINDER ASSY. - hitch L.H., (Repairs, Figure 173)

1шт.

45

L11545

CYLINDER ASSY. - hitch R.H., (Repairs, Figure 173)

1шт.

46

L11550

HOSE - hitch L.H. cylinder return (38-13/16")

1шт.

47

L11549

HOSE - hitch R.H. cylinder return (22-1/2")

1шт.

48

L11551

GUARD - return hose

2шт.

49

A13101

STRAP - hose clamp

1шт.

59

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose retaining

1шт.

51

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, (1-3/16" to 1-3/4")

4шт.

52

A14432

NIPPLE - return hose (1/2" hose x 1/2" P.T.)

2шт.

53

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, (1/2" P.T. x 90 deg.)

2шт.

54

L11552

BRACKET - cylinder hose clamp

2шт.

55

L11553

MOUNTING CLIP

CLAMP - cylinder hose retaining

2шт.

56

75-520

SCREW - mach. (5/16 x 1-1/4" N.C. rd. hd.)

2шт.
