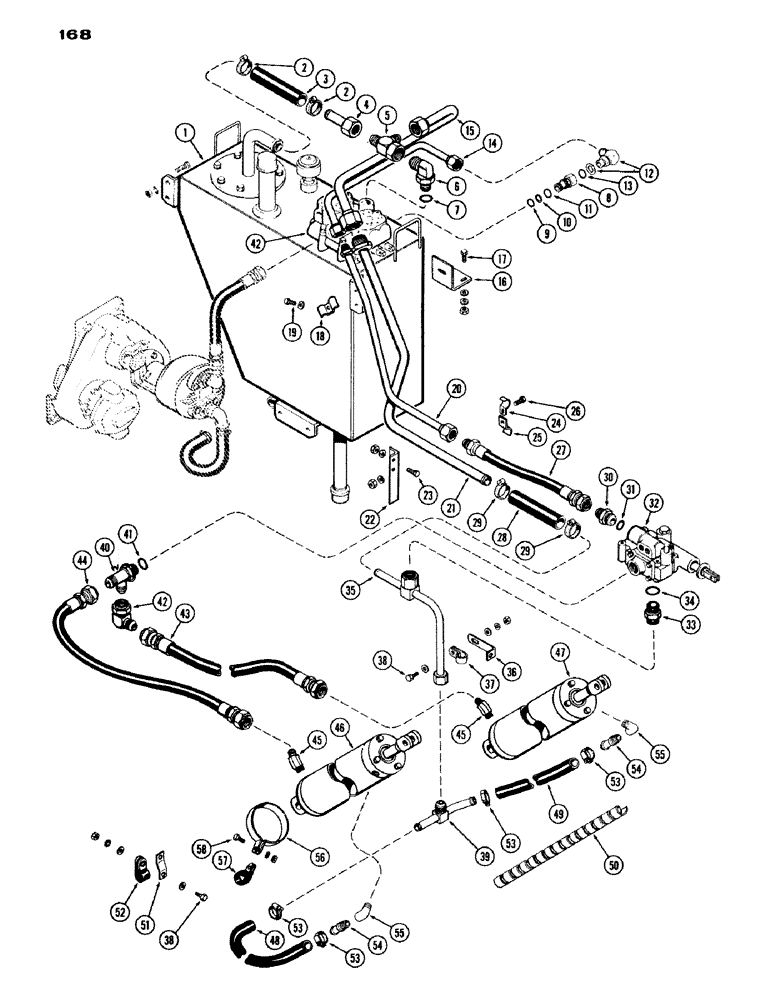

Запчасти Case IH 1200 (168) - THREE POINT HITCH HYDRAULIC SYSTEM, USED PRIOR TO TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

1

A55272

RESERVOIR ASSY. - hydraulic oil (Repairs, F. 151)

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

3

A56347

HOSE, control, Serial Range: valve-reservoir

1шт.

4

A55694

TUBE ASSY. - valve return

1шт.

5

A56350

X

TEE - valve to reservoir swivel

1шт.

6

A55678

X

ELBOW ASSY. - valve outlet, Includes: Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 59/64 x 1/8"

1шт.

8

L10045

FITTING ASSY. - high pressure carry-over, Includes: Ref. 9 - 11

1шт.

9

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

"O" RING - carry-over fitting

1шт.

10

A25298

RING

- back up, fitting

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - fitting, 3/4 x 59/64 x 1/8"

1шт.

12

A56341

ELBOW

ASSY. - valve pressure outlet, Includes: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 59/64 x 1/8"

1шт.

14

A56342

TUBE ASSY. - pressure, Serial Range: elbow-junction

1шт.

15

A56349

TUBE ASSY. - draft to remote return

1шт.

16

A56346

BRACKET - press. & return tube support

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Bracket mtg. Hex, 1/2"-13 x 2", G5

1шт.

18

R15257

CLAMP

- press. & return, Serial Range: tube-support

1шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp, 5/16 x 1-1/2" N.C. hex

1шт.

20

A56343

TUBE ASSY. - junction to draft press. hose

1шт.

21

A56348

TUBE ASSY. - draft to remote return

1шт.

22

A56351

ANGLE - press. & return tube support

1шт.

23

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- angle, 5/16 x 1" N.C. hex

2шт.

24

A13680

CLAMP - draft pressure tube

1шт.

25

A12308

CLAMP

- draft return tube

1шт.

26

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Clamp Hex, 1/4"-20 x 1", G5

2шт.

27

A56344

HOSE - hydraulic pressure

1шт.

28

A55679

HOSE - hydraulic return

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

30

A56345

X

CONNECTOR ASSY. - valve inlet pressure, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector, 3/4 x 59/64 x 1/8"

1шт.

32

L10043

VALVE

ASSY. - depth & position (Repairs, F. 171)

1шт.

33

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING ASSY - connector, 1" O.D. tube, Incl. Ref. 34

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - fitting, 1-11/64 x 1-13/32 x 7/64"

1шт.

35

L11546

MANIFOLD ASSY. - upper hydraulic return

1шт.

36

L11547

BRACKET - return manifold retainer

1шт.

37

49799

GASKET

CLAMP - manifold, Serial Range: tube-bracket

1шт.

38

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

39

L11548

MANIFOLD ASSY. - lower hydraulic return

1шт.

40

A56354

TEE ASSY. - valve to cylinder pressure hose, Includes: Ref. 41

1шт.

41

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - tee, 1-3/64 x 1-9/32 x 7/64"

1шт.

42

L10291

X

ELBOW - swivel, 90 deg.

1шт.

43

A56352

HOSE - valve to R.H. hitch cylinder

1шт.

44

A56353

HOSE - valve to L.H. hitch cylinder

1шт.

45

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 3/4" tube x 1/2" P.T. x 45 deg.

2шт.

46

A56414

CYLINDER ASSY. - hitch L.H. (Repairs, F. 173)

1шт.

47

L11545

CYLINDER ASSY. - hitch R.H. (Repairs, F. 173)

1шт.

48

L11550

HOSE - hitch L.H. cylinder return (38-13/16")

1шт.

49

L11549

HOSE - hitch R.H. cylinder return (22-1/2")

1шт.

50

L11551

GUARD - return hose

2шт.

51

A13101

STRAP - hose clamp

1шт.

52

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose retaining

1шт.

53

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.

54

A14432

NIPPLE - return hose (1/2" hose x 1/2" N.P.T.)

2шт.

55

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" taper P.T. x 90 deg.

2шт.

56

L11552

BRACKET - cylinder hose clamp

2шт.

57

L11553

MOUNTING CLIP

CLAMP - cylinder hose retaining

2шт.

58

75-520

SCREW - mach., 5/16 x 1-1/4" N.C. rd. hd.

2шт.
