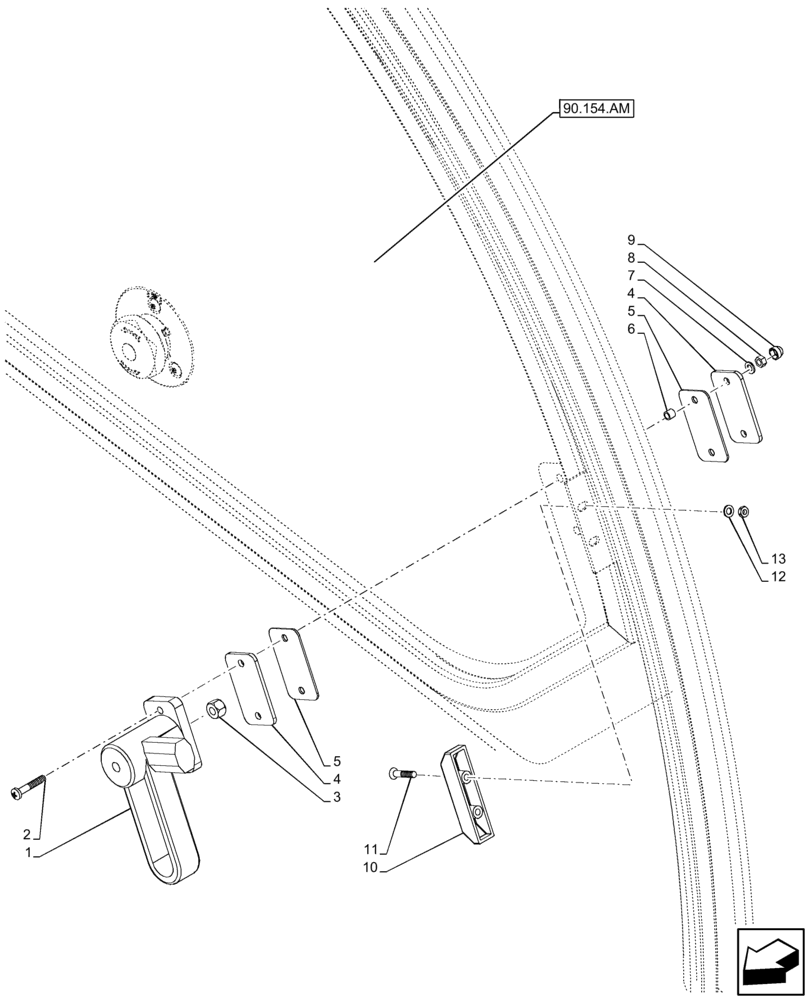

Запчасти Case IH FARMLIFT 935 (90.154.AK) - CAB DOOR, WINDOW, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76088289

HANDLE

1шт.

2

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

2шт.

3

14048214

NUT,M8 x 1.25

1шт.

4

76088290

COVER PLATE

2шт.

5

76088291

SEAL

2шт.

6

47558580

SPACER

2шт.

7

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

86508813

NUT,M5, Cl 8

2шт.

9

87516430

NUT,Round, M5

2шт.

10

5094377

BRACKET

1шт.

11

86523015

SCREW

2шт.

12

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

2шт.

13

14048617

LOCK NUT,M5 x .8

2шт.
