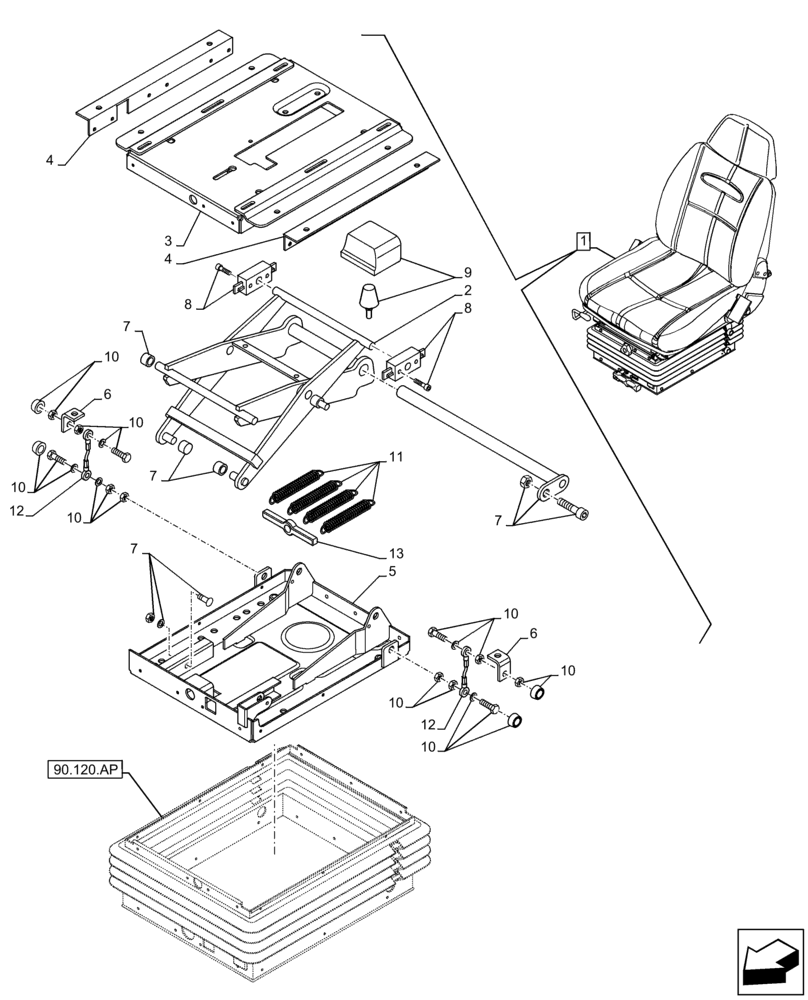

Запчасти Case IH FARMLIFT 935 (90.120.BC) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
8
11
8
10
7
10
10
10
10
4
10
4
7
90.120.ap
12
7
10
6
3
12
10
2
5
13
6
10
10
7
1
№
Артикул
Название
Примечание
Количество
1
47635531
DRIVER SEAT
ASSY, Incl 2 - 13
1шт.
See Seat Components also in Figures 90.120.AC, 90.120.AE, 90.120.AF, 90.120.AJ, 90.120.AM, 90.120.AP, 90.120.AT, 90.120.BA, 90.120.BH, 90.151.AD (01)
1шт.
2
47383518
WASHER
Pantograph
1шт.
3
NSS
NOT SOLD SEPARAT
Upper Plate, Incl in 1
1шт.
4
NSS
NOT SOLD SEPARAT
Support, Incl in 1
2шт.
5
NSS
NOT SOLD SEPARAT
Lower Plate, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Bracket, Incl in 1
2шт.
7
47683498
KIT
Pantograph Bolts
1шт.
8
47683529
KIT
Slide
1шт.
9
47683488
KIT
Buffer
1шт.
10
47683460
KIT
Tie Rod Bolts
1шт.
11
87753741
SPRING
4шт.
12
NSS
NOT SOLD SEPARAT
Cable, Incl in 1
2шт.
13
NSS
NOT SOLD SEPARAT
Tie Rod, Incl in 1
1шт.
Выбрано товаров: 14
