(90.120.BB) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, BASE PLATE

Запчасти Case IH FARMLIFT 935 (90.120.BB) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

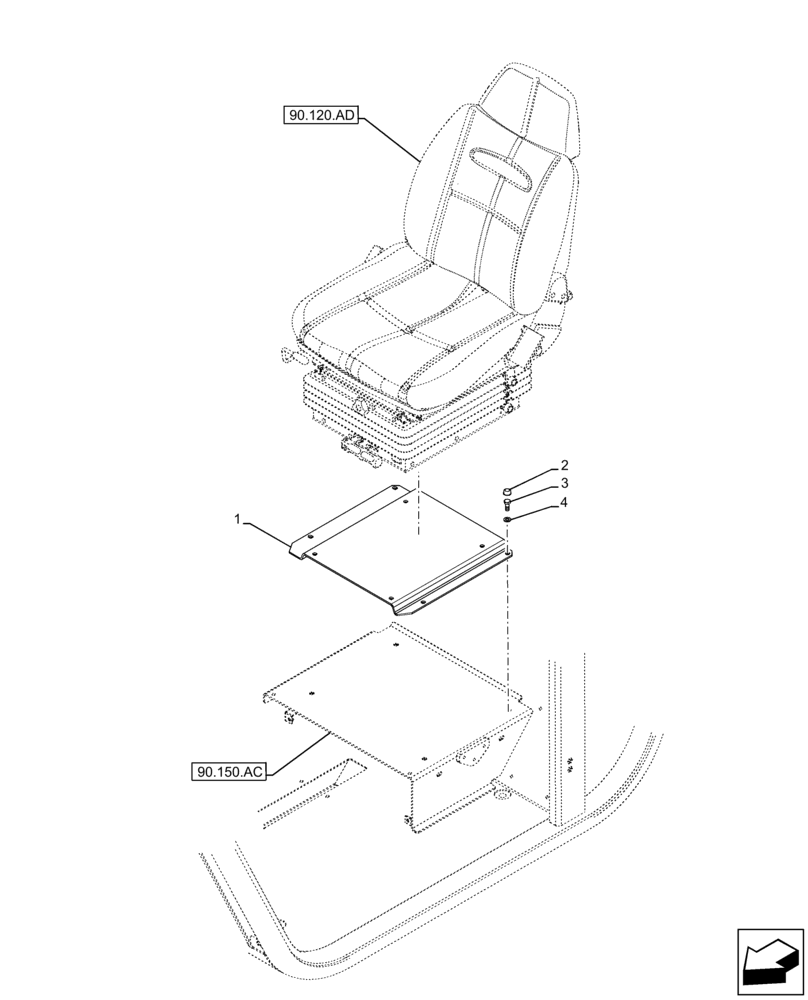

Схема запчастей Case IH FARMLIFT 935 - (90.120.BB) - VAR - 749372 - SEAT, MECHANICAL SUSPENSION, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
90.150.ac
90.120.ad
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47419830

PLATE

1шт.

2

15811487

CAP,13mm x 8.5mm

4шт.

3

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
