(90.118.BM[07]) - VAR - 749731 - RH MIRROR, REAR

Запчасти Case IH FARMLIFT 935 (90.118.BM[07]) - VAR - 749731 - RH MIRROR, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

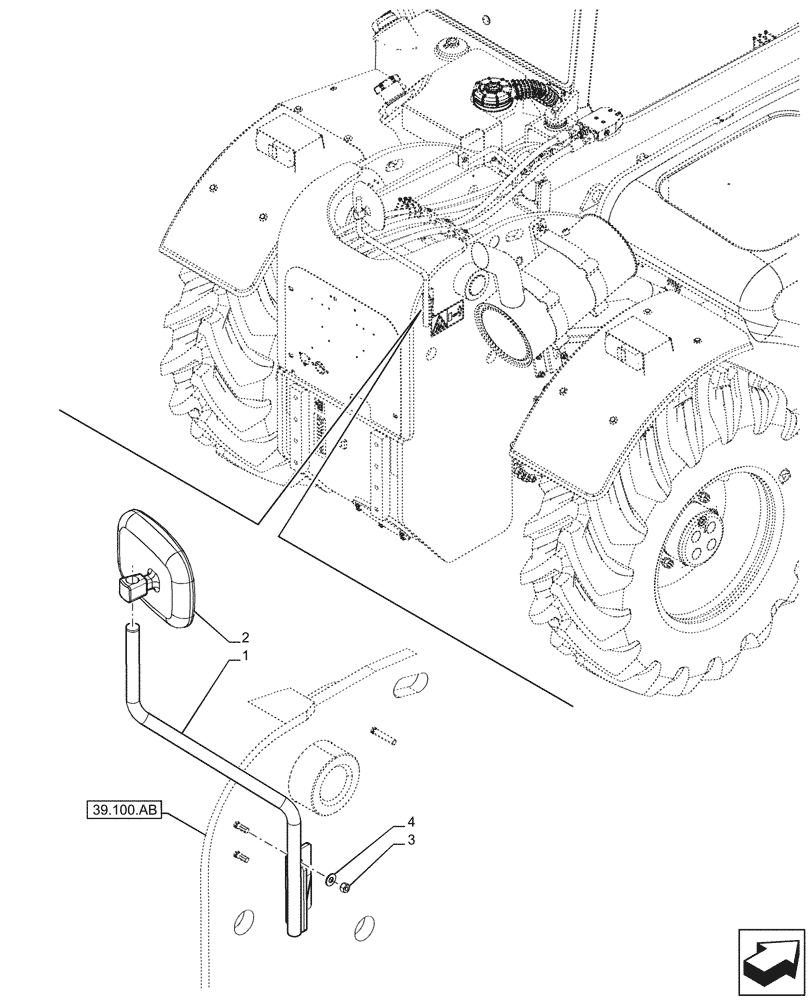

Схема запчастей Case IH FARMLIFT 935 - (90.118.BM[07]) - VAR - 749731 - RH MIRROR, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
1
3
39.100.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47659340

SUPPORT

1шт.

2

5126233

REAR VIEW MIRROR

RH, Rear

1шт.

3

68841

NUT,M8 x 1.25, Cl 8

2шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
