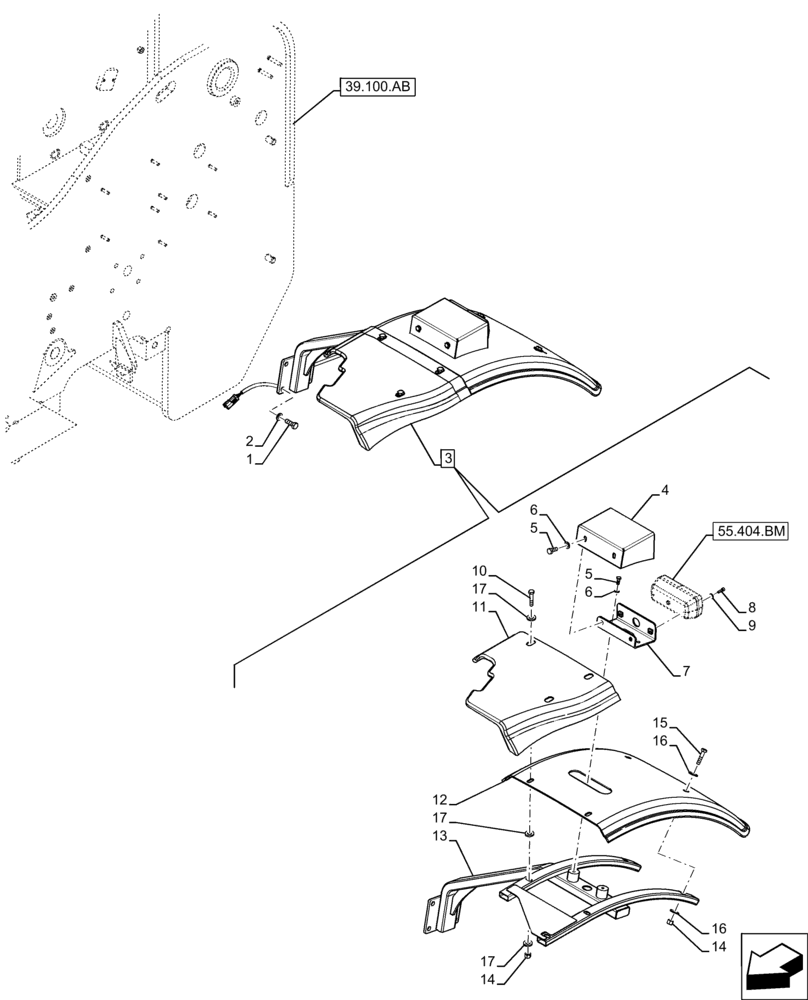

Запчасти Case IH FARMLIFT 935 (90.116.AC[01]) - REAR FENDER, LEFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

2

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

3

84592047

FENDER

ASSY, Incl 4 - 16

1шт.

See also Figure 55.404.BM

1шт.

4

84592148

COVER

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

84592114

SUPPORT

1шт.

8

14305321

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

9

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

2шт.

10

16160131

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

3шт.

11

47501258

MOUNTING PLATE

1шт.

12

47464068

FENDER

1шт.

13

47604256

SUPPORT

1шт.

14

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

5шт.

15

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

16

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

17

12644301

WASHER,M10 x 35 x 3

7шт.
