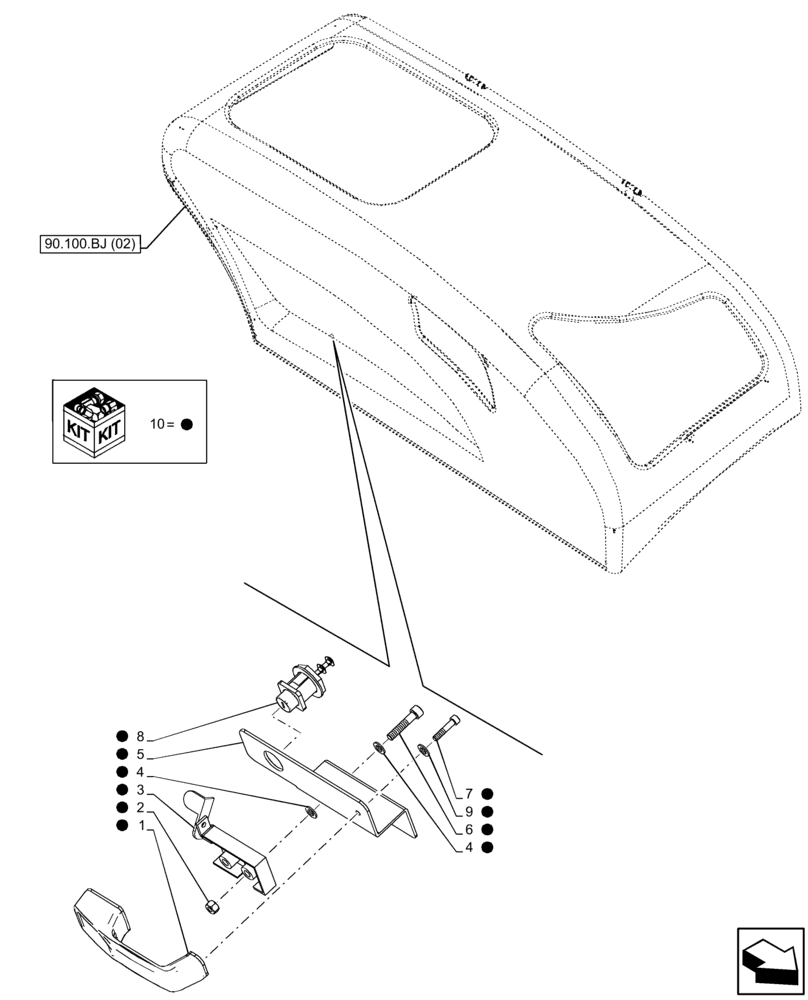

Запчасти Case IH FARMLIFT 935 (90.102.AT) - ENGINE HOOD, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

Handle, Incl in 10

1шт.

2

68841

NUT,M8 x 1.25, Cl 8

2шт.

3

NSS

NOT SOLD SEPARAT

Lock, Incl in 10

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 10

1шт.

6

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

2шт.

7

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Lock, Incl in 10

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

47385602

KIT

Incl 1 - 9

1шт.
