Запчасти Case IH FARMLIFT 935 (88.100.55[01]) - SOCKET, BOOM (88) - ACCESSORIES

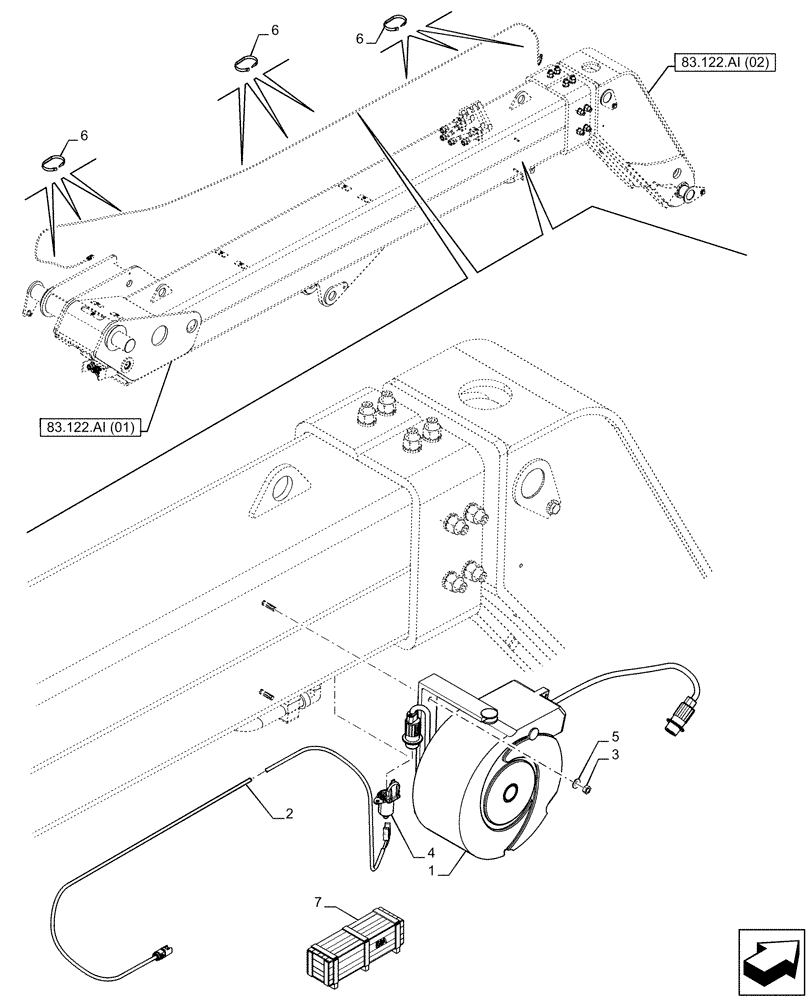

Схема запчастей Case IH FARMLIFT 935 - (88.100.55[01]) - SOCKET, BOOM (88) - ACCESSORIES
4
6
83.122.ai (01)
2
3
83.122.ai (02)
7
6
1
6
5

Артикул

Название

Примечание

Количество

1

76094498

ELECTRIC CABLE

Reel

1шт.

2

84561426

WIRE HARNESS

Chassis Harness to Reel

1шт.

3

9706690

NUT,M8 x 1.25, Cl 8

2шт.

4

76094596

POWER SOCKET

3 Pin

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

15шт.

7

47613481

CONSTRUCTION DIA

Boom Electric Socket, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA, FARMLIFT 735, FARMLIFT 742, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM6.32 NRC, LM6.35 NRC, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 9
