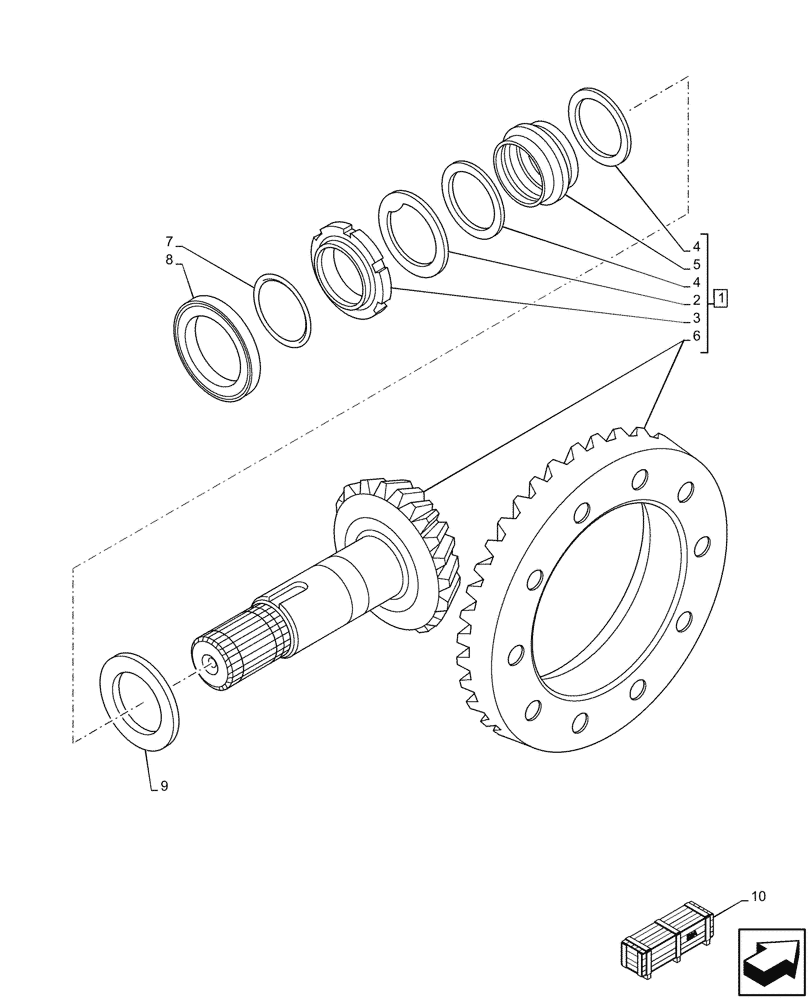

Запчасти Case IH FARMLIFT 935 (88.100.25) - FRONT AXLE, BEVEL GEAR (88) - ACCESSORIES

1

47963184

BEVEL GEAR

ASSY, Incl 2 - 6

1шт.

2

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

3

6914529

NUT

1шт.

4

6914527

WASHER

2шт.

5

175957A1

SPACER

1шт.

6

47953446

BEVEL GEAR

Bevel Gear Set

1шт.

7

47546784

O-RING

1шт.

8

47488203

SEALING RING

1шт.

9

47963161

SHIM

1шт.

9

190506A1

SHIM,2.5mm Thk

2.5mm Thk

1шт.

9

190508A1

SHIM,2.6mm Thk

2.6mm Thk

1шт.

9

190509A1

SHIM,2.7mm Thk

2.7mm Thk

1шт.

9

190510A1

SHIM,2.8mm Thk

2.8mm Thk

1шт.

9

190511A1

SHIM,2.9mm Thk

2.9mm Thk

1шт.

9

190512A1

SHIM,3.0mm Thk

3.0mm Thk

1шт.

9

190513A1

SHIM,3.1mm Thk

3.1mm Thk

1шт.

9

190514A1

SHIM,3.2mm Thk

3.2mm Thk

1шт.

9

190515A1

SHIM,3.3mm Thk

3.3mm Thk

1шт.

9

190516A1

SHIM,3.4mm Thk

3.4mm Thk

1шт.

10

47977695

CONSTRUCTION DIA

Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, LM7.35 DA, FARMLIFT 735, FARMLIFT 735 DA, LM9.35, LM9.35 FLEX, FARMLIFT 935

1шт.
