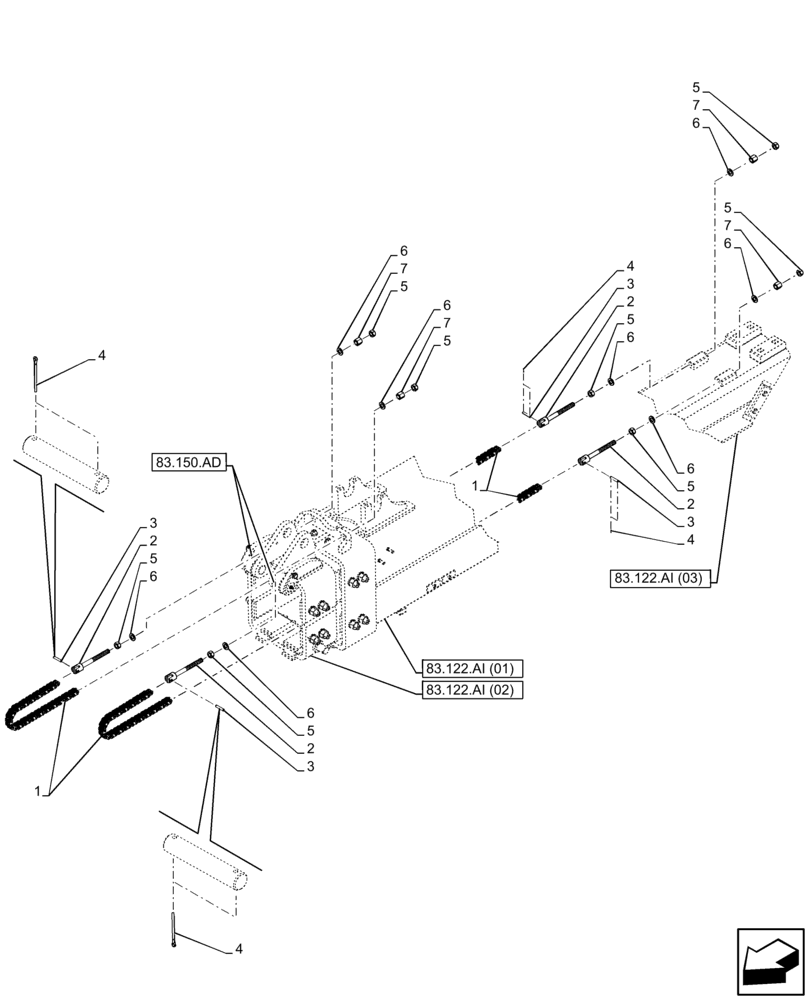

Запчасти Case IH FARMLIFT 935 (83.150.AL) - BOOM, CHAIN, UPPER (83) - TELESCOPIC SINGLE ARM

1

84546281

CHAIN,195 Links x 19.05mm = 3714.75mm

Upper

2шт.

2

84590176

TIE-ROD

4шт.

3

87548663

PIN

4шт.

4

10795101

COTTER PIN,M1.6 x 18

8шт.

5

12164124

NUT,M16 x 1.5, Cl 8

8шт.

6

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

8шт.

7

87311282

NUT,M16 x 1.5

4шт.
