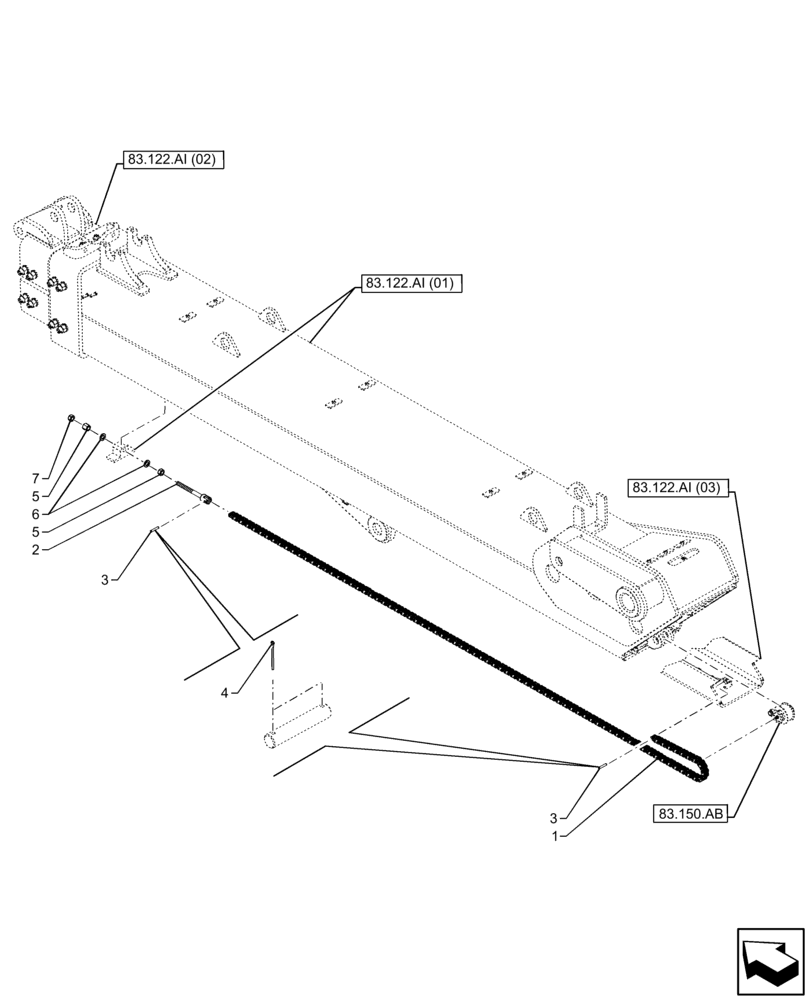

Запчасти Case IH FARMLIFT 935 (83.150.AK) - BOOM, CHAIN, LOWER (83) - TELESCOPIC SINGLE ARM

1

47506993

CHAIN,167 Links x 19.05mm = 3181.35mm

Lower

1шт.

2

84590176

TIE-ROD

1шт.

3

87548663

PIN

2шт.

4

10795101

COTTER PIN,M1.6 x 18

4шт.

5

12164124

NUT,M16 x 1.5, Cl 8

2шт.

6

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

87311282

NUT,M16 x 1.5

1шт.
