(83.122.AI[06]) - VAR - 749734 - BOOM (9M), PROTECTION, DUST PLATE

Запчасти Case IH FARMLIFT 935 (83.122.AI[06]) - VAR - 749734 - BOOM (9M), PROTECTION, DUST PLATE (83) - TELESCOPIC SINGLE ARM

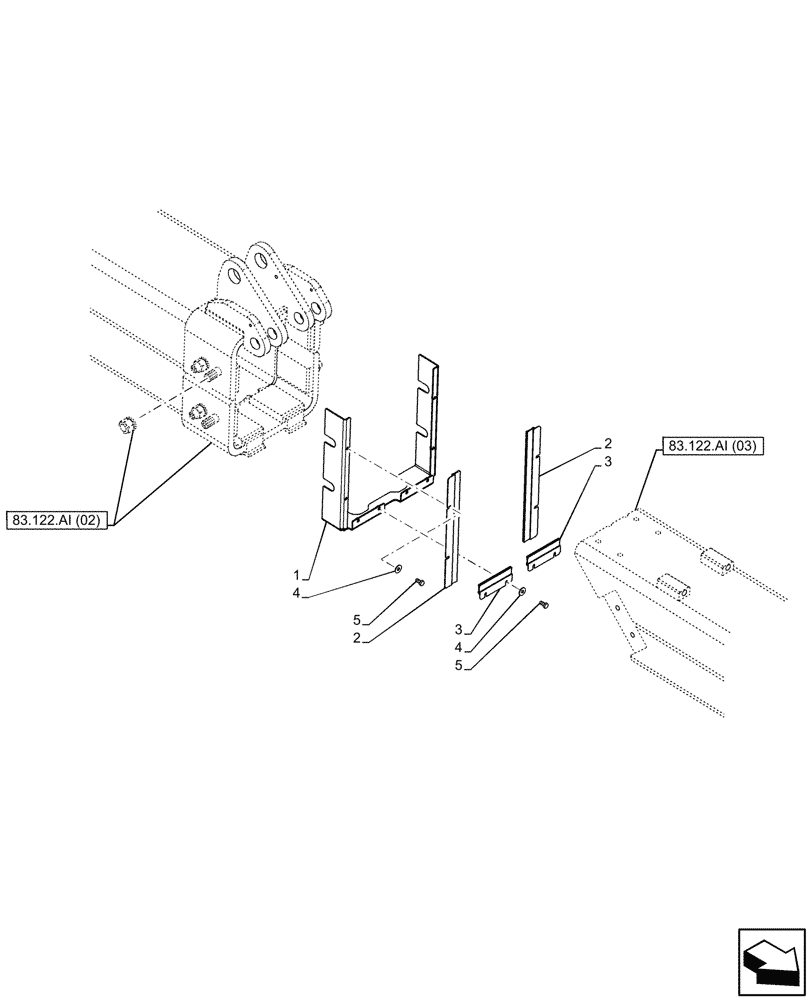

Схема запчастей Case IH FARMLIFT 935 - (83.122.AI[06]) - VAR - 749734 - BOOM (9M), PROTECTION, DUST PLATE (83) - TELESCOPIC SINGLE ARM
4
3
4
2
5
83.122.ai (02)
2
1
3
5
83.122.ai (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47659502

BRUSH HOLDER

1шт.

2

47637867

BRUSH

Side

2шт.

3

47637869

BRUSH

Lower

2шт.

4

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

8шт.

5

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

8шт.

Выбрано товаров: 0
