Запчасти Case IH FARMLIFT 935 (71.460.BT) - VAR - 749410 - LUBRICATION LINE, SUPPORT (71) - LUBRICATION SYSTEM

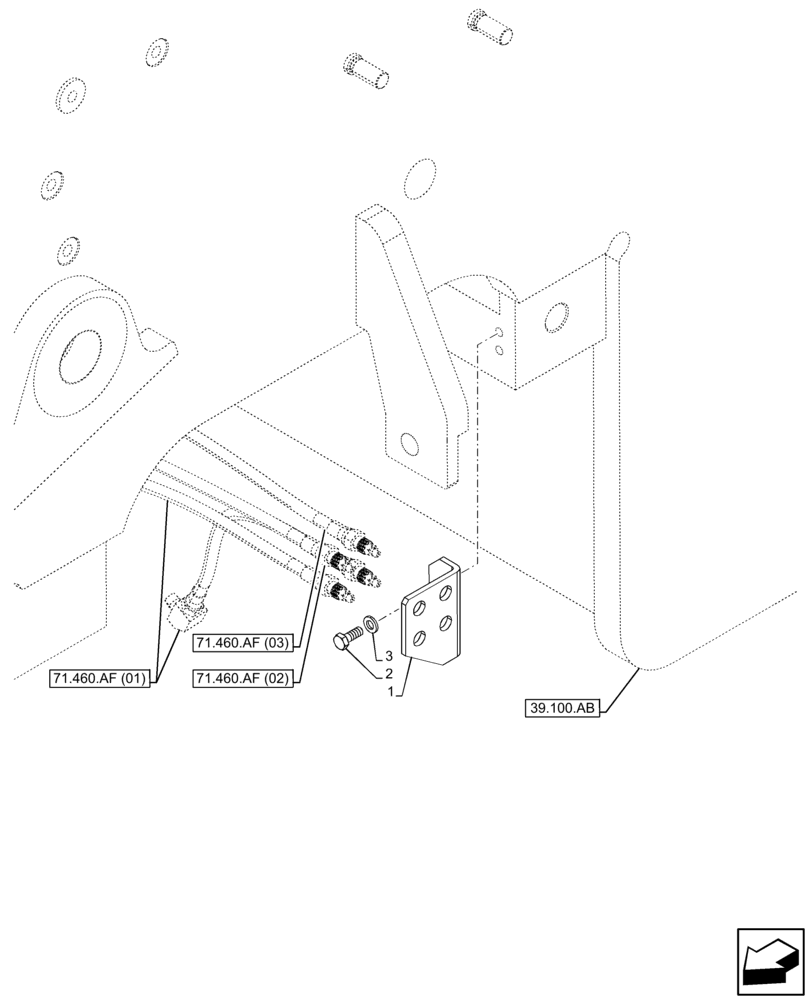

Схема запчастей Case IH FARMLIFT 935 - (71.460.BT) - VAR - 749410 - LUBRICATION LINE, SUPPORT (71) - LUBRICATION SYSTEM
71.460.af (03)
2
3
39.100.ab
1
71.460.af (02)
71.460.af (01)

Артикул

Название

Примечание

Количество

1

47532422

PLATE

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

3

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 3
