(55.511.AA) - VAR - 749086 - WORK LIGHT, BOOM, WIRE HARNESS (9M)

Запчасти Case IH FARMLIFT 935 (55.511.AA) - VAR - 749086 - WORK LIGHT, BOOM, WIRE HARNESS (9M) (55) - ELECTRICAL SYSTEMS

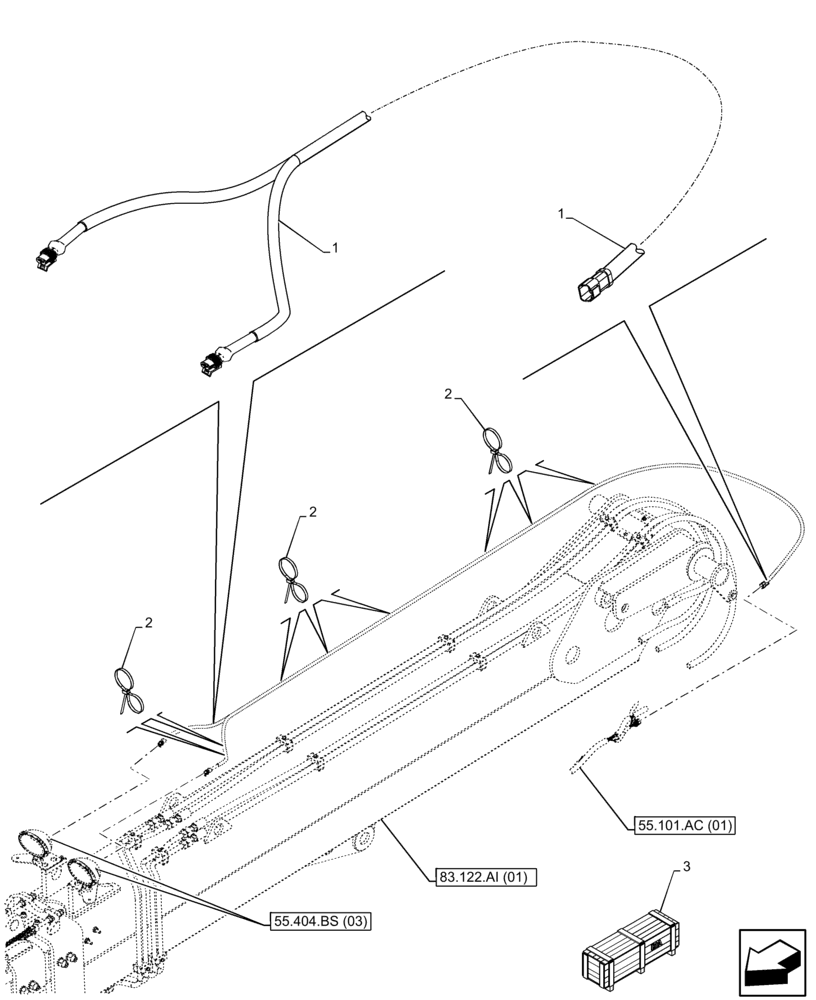

Схема запчастей Case IH FARMLIFT 935 - (55.511.AA) - VAR - 749086 - WORK LIGHT, BOOM, WIRE HARNESS (9M) (55) - ELECTRICAL SYSTEMS
55.101.ac (01)
2
2
55.404.bs (03)
3
83.122.ai (01)
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84561425

WIRE HARNESS

Boom Working Light

1шт.

2

435437A1

CABLE TIE,3/16" x 7 1/4"

15шт.

3

47610751

CONSTRUCTION DIA

Two Boom Work Lights, 9M, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM9.35, LM9.35 FLEX, FARMLIFT 935, LM9.35 NRC

1шт.
