(55.404.BS[03]) - VAR - 749086 - WORKING LIGHT, BOOM (9M)

Запчасти Case IH FARMLIFT 935 (55.404.BS[03]) - VAR - 749086 - WORKING LIGHT, BOOM (9M) (55) - ELECTRICAL SYSTEMS

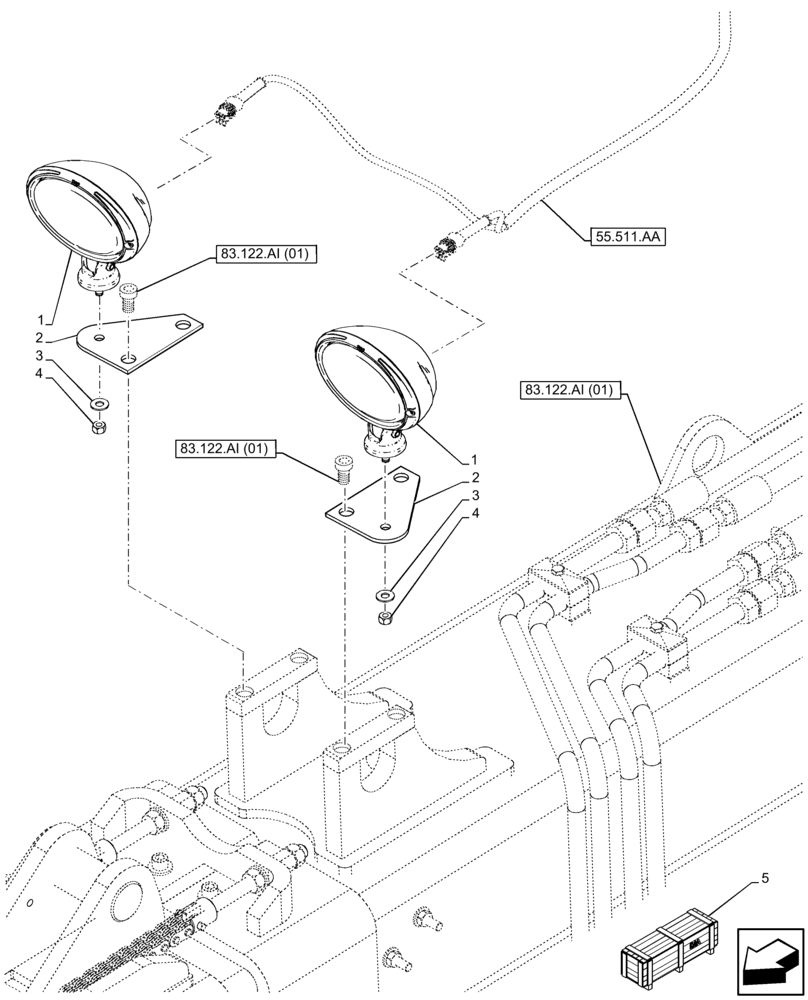

Схема запчастей Case IH FARMLIFT 935 - (55.404.BS[03]) - VAR - 749086 - WORKING LIGHT, BOOM (9M) (55) - ELECTRICAL SYSTEMS
5
83.122.ai (01)
4
55.511.aa
83.122.ai (01)
3
3
2
83.122.ai (01)
4
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87630894

WORKING LIGHT

Boom

2шт.

2

47392387

PLATE

2шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

68841

NUT,M8 x 1.25, Cl 8

2шт.

5

47610751

CONSTRUCTION DIA

Two Boom Work Lights, 9M, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM9.35, LM9.35 FLEX, FARMLIFT 935, LM9.35 NRC

1шт.
