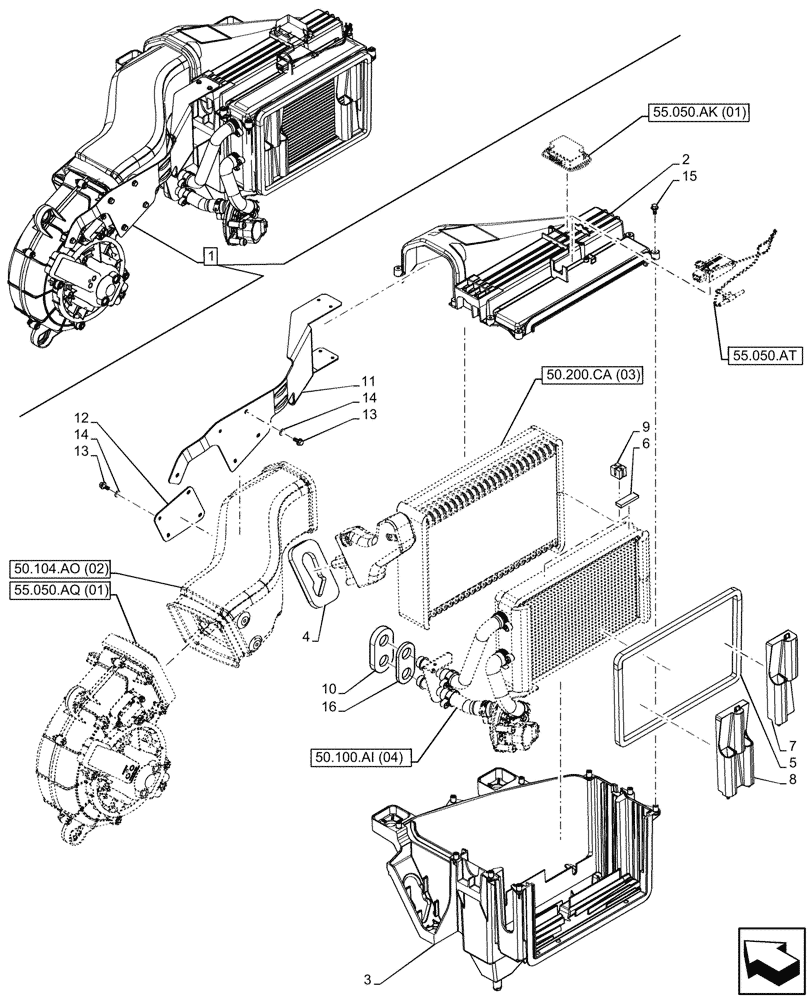

Запчасти Case IH FARMLIFT 935 (50.200.CA[02]) - VAR - 749193 - AIR CONDITIONING, EVAPORATOR, COMPONENTS (50) - CAB CLIMATE CONTROL

1

84593881

AIR CONDITIONER

ASSY, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Upper Case, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Lower Case, Incl in 1

1шт.

4

47586857

GASKET

A/C Tubes

1шт.

5

47585967

GASKET

Front

1шт.

6

47586276

GASKET

Baffles, Years: -27-SEP-16

2шт.

7

47585958

BAFFLE

RH, Years: -27-SEP-16

1шт.

8

47585954

BAFFLE

LH, Years: -27-SEP-16

1шт.

9

84579704

GROMMET

1шт.

10

47650517

GASKET

Water Tubes

1шт.

11

47585943

BRACKET

Front

1шт.

12

47585940

PLATE

Rear

1шт.

13

44006

BOLT,M5 x 10mm

9шт.

14

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Years: -27-SEP-16

9шт.

15

84582238

SCREW,M4 x 12mm

17шт.

16

47650509

GASKET

Water Tubes

1шт.
