Запчасти Case IH FARMLIFT 935 (41.216.AV) - HYDRAULIC STEERING, LINE, STEERING CYLINDER (41) - STEERING

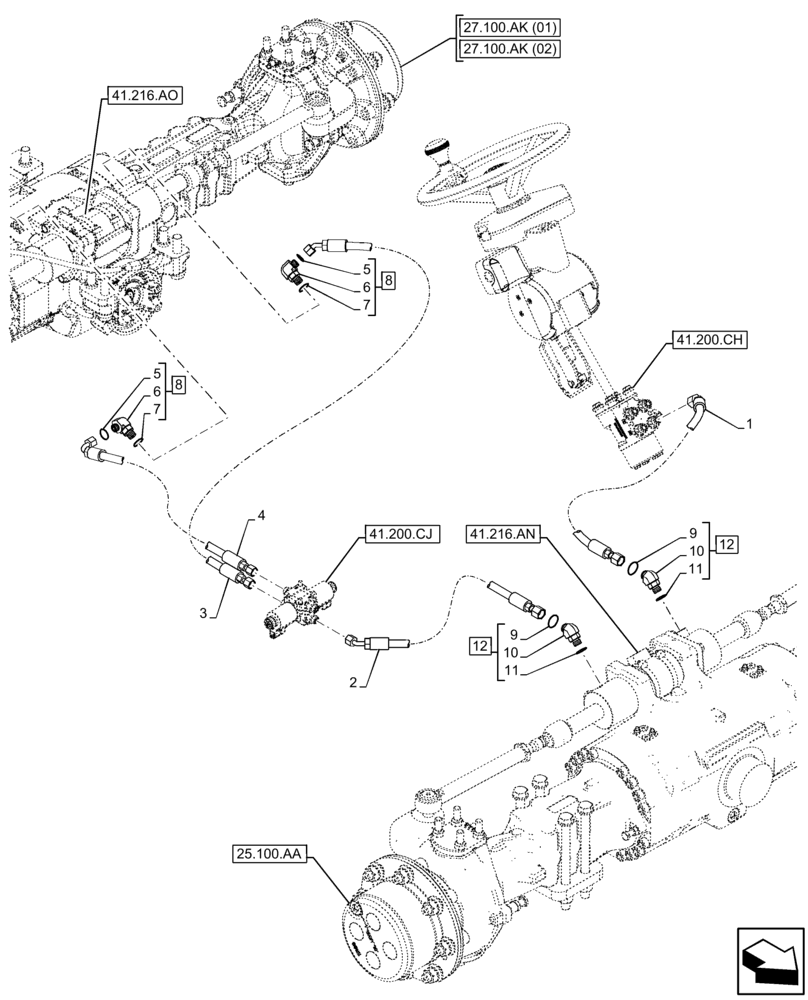

Схема запчастей Case IH FARMLIFT 935 - (41.216.AV) - HYDRAULIC STEERING, LINE, STEERING CYLINDER (41) - STEERING
27.100.ak (02)
6
5
27.100.ak (01)
11
7
41.216.an
12
10
41.200.cj
1
9
5
2
8
7
41.216.ao
11
10
8
12
41.200.ch
3
25.100.aa
4
9
6

Артикул

Название

Примечание

Количество

1

84519105

HOSE,9.53mm ID x 1950mm L, SAE 100R16

Steering Motor Port R to Front Axle Steering Cylinder

1шт.

2

84568265

HOSE,9.53mm ID x 1310mm L, SAE 100R16

Steering Valve Port T to Front Axle Steering Cylinder

1шт.

3

84569132

HOSE,9.53mm ID x 1745mm L, SAE 100R16

Steering Valve Port A to Rear Axle Steering Cylinder

1шт.

4

84568899

HOSE,9.53mm ID x 1435mm L, SAE 100R16

Steering Valve Port B to Rear Axle Steering Cylinder

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

2шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

8

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 5 - 7

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

2шт.

11

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 9 - 11

2шт.

Выбрано товаров: 12
