Запчасти Case IH FARMLIFT 935 (41.200.CJ) - STEERING VALVE (41) - STEERING

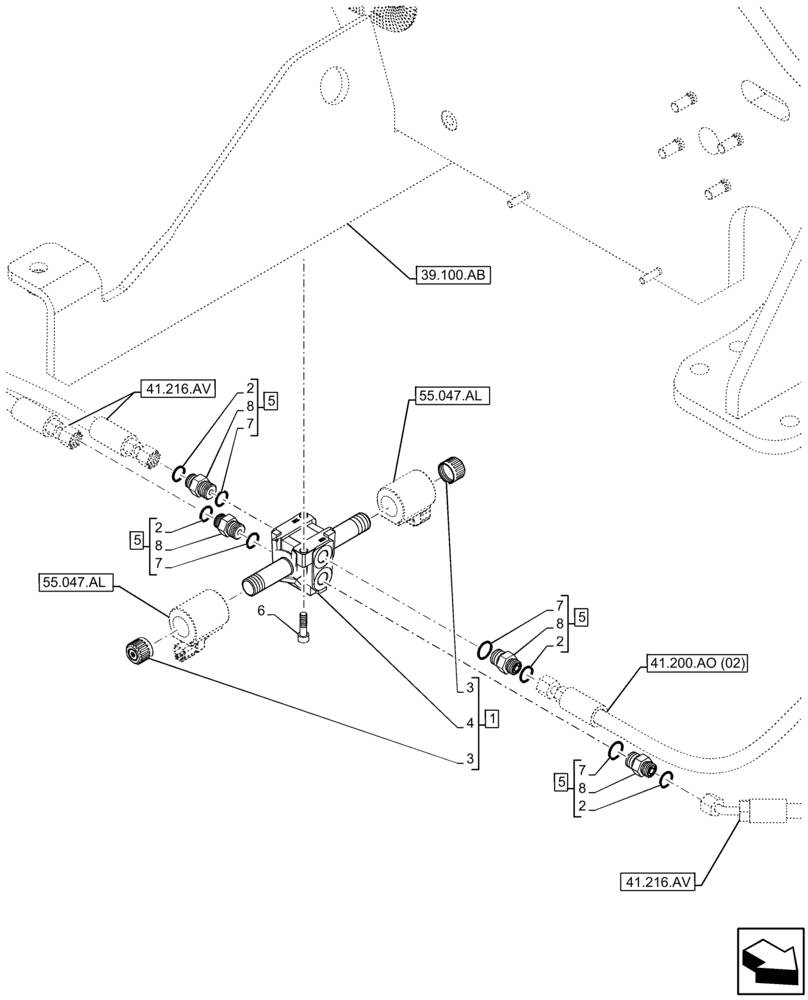

Схема запчастей Case IH FARMLIFT 935 - (41.200.CJ) - STEERING VALVE (41) - STEERING
6
39.100.ab
55.047.al
7
3
7
5
8
41.200.ao (02)
5
2
4
8
41.216.av
55.047.al
8
5
7
7
2
2
2
8
41.216.av
1
3
5

Артикул

Название

Примечание

Количество

1

84227859

STEERING VALVE

ASSY, Incl 3, 4

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

3

84230596

KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

5

87672176

HYD CONNECTOR

ASSY, Incl 2, 7, 8

4шт.

6

14306531

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

4шт.

Выбрано товаров: 8
