(41.200.BQ) - CONTROL VALVE, HYDRAULIC STEERING, LINE

Запчасти Case IH FARMLIFT 935 (41.200.BQ) - CONTROL VALVE, HYDRAULIC STEERING, LINE (41) - STEERING

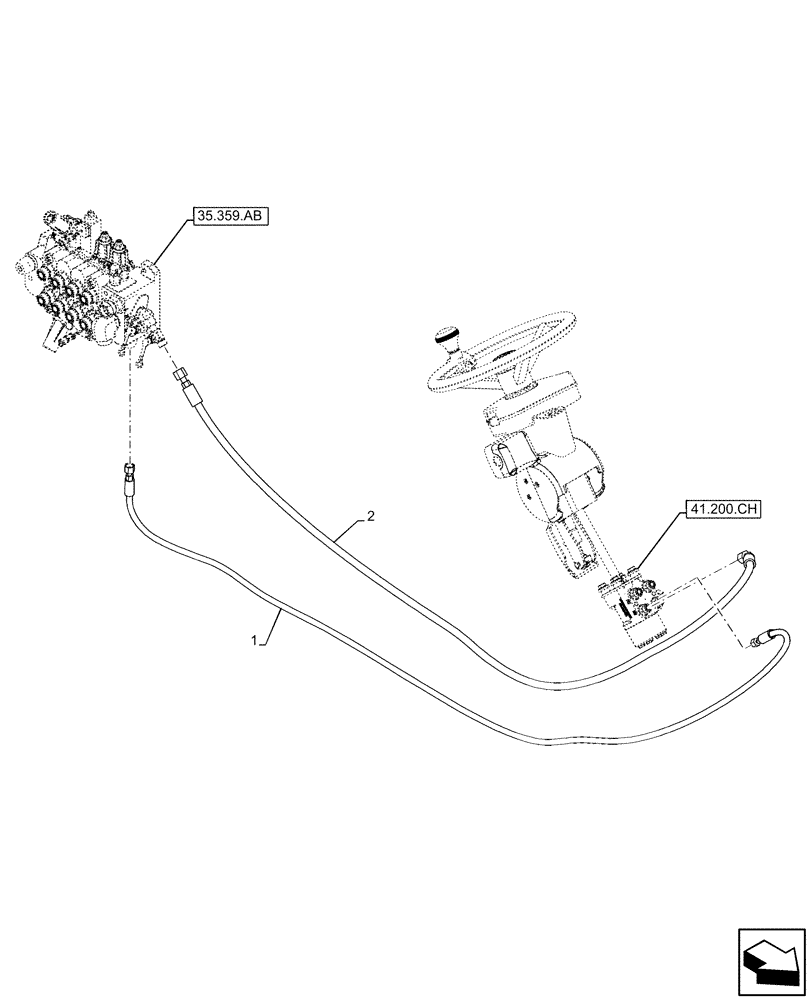

Схема запчастей Case IH FARMLIFT 935 - (41.200.BQ) - CONTROL VALVE, HYDRAULIC STEERING, LINE (41) - STEERING
35.359.ab
41.200.ch
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84519039

HOSE,6.35mm ID x 2530mm L, SAE 100R16

Steering Motor Port LS to Main Control Valve DLS

1шт.

2

84518781

HOSE,9.53mm ID x 2140mm L, SAE 100R16

Steering Motor Port P to Main Control Valve Port D

1шт.

Выбрано товаров: 2
