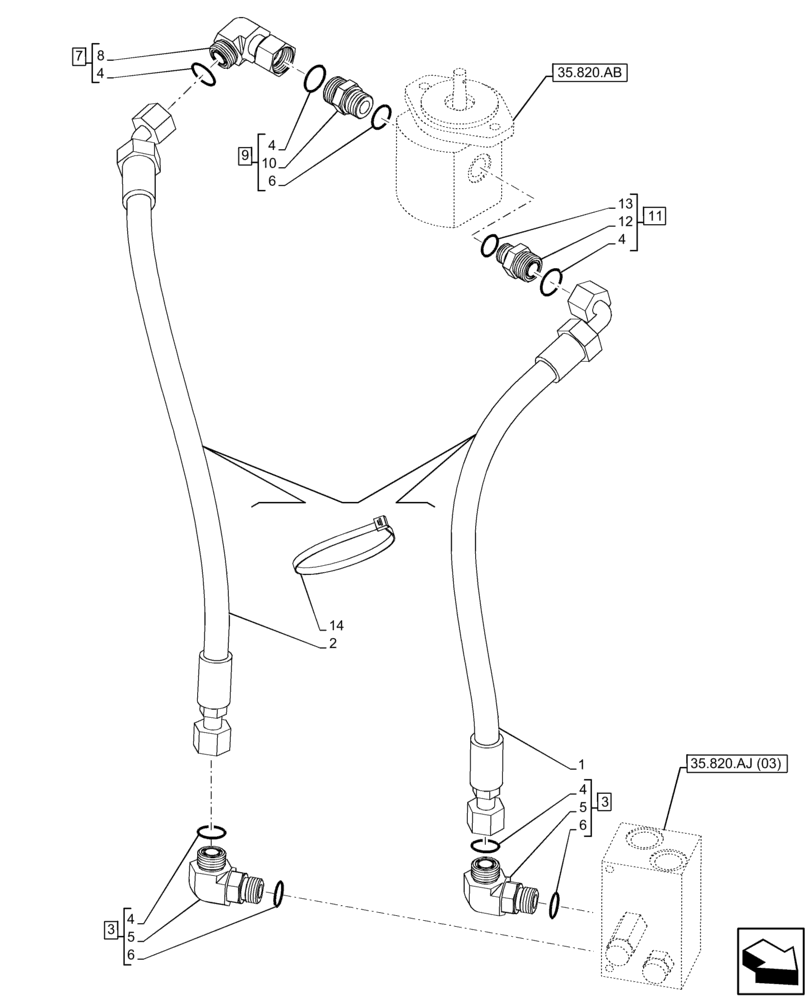

Запчасти Case IH FARMLIFT 935 (35.820.AG[03]) - VAR - 702006 - FAN, RADIATOR, HYDRAULIC LINE, MOTOR (35) - HYDRAULIC SYSTEMS

1

84560053

HYDRAULIC HOSE,15.88mm ID x 640mm L, SAE 100R17

Drive Valve Port M1 to Motor

1шт.

2

84561323

HYDRAULIC HOSE,15.88mm ID x 770mm L, SAE 100R17

Motor to Drive Valve Port M2

1шт.

3

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Incl 4 - 6

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

2шт.

6

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

7

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

ASSY, Incl 4, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 4, 6, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

11

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 4, 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

14560387

HOSE CLIP,Black, 380mm L

1шт.
