Запчасти Case IH FARMLIFT 935 (35.820.AD[02]) - VAR - 702006 - FAN, RADIATOR, HYDRAULIC LINE, RADIATOR (35) - HYDRAULIC SYSTEMS

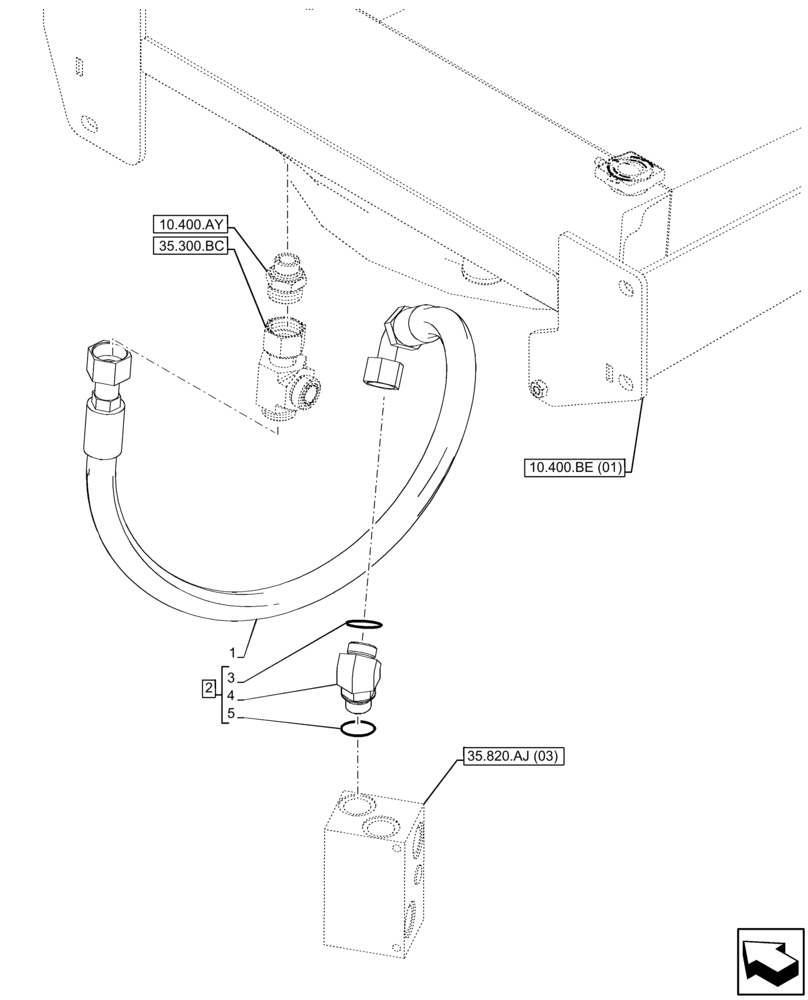

Схема запчастей Case IH FARMLIFT 935 - (35.820.AD[02]) - VAR - 702006 - FAN, RADIATOR, HYDRAULIC LINE, RADIATOR (35) - HYDRAULIC SYSTEMS
10.400.ay
35.820.aj (03)
1
35.300.bc
10.400.be (01)
2
5
4
3

Артикул

Название

Примечание

Количество

1

47525939

HYDRAULIC HOSE

Drive Valve Port TANK to Cooler

1шт.

2

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 3 - 5

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
