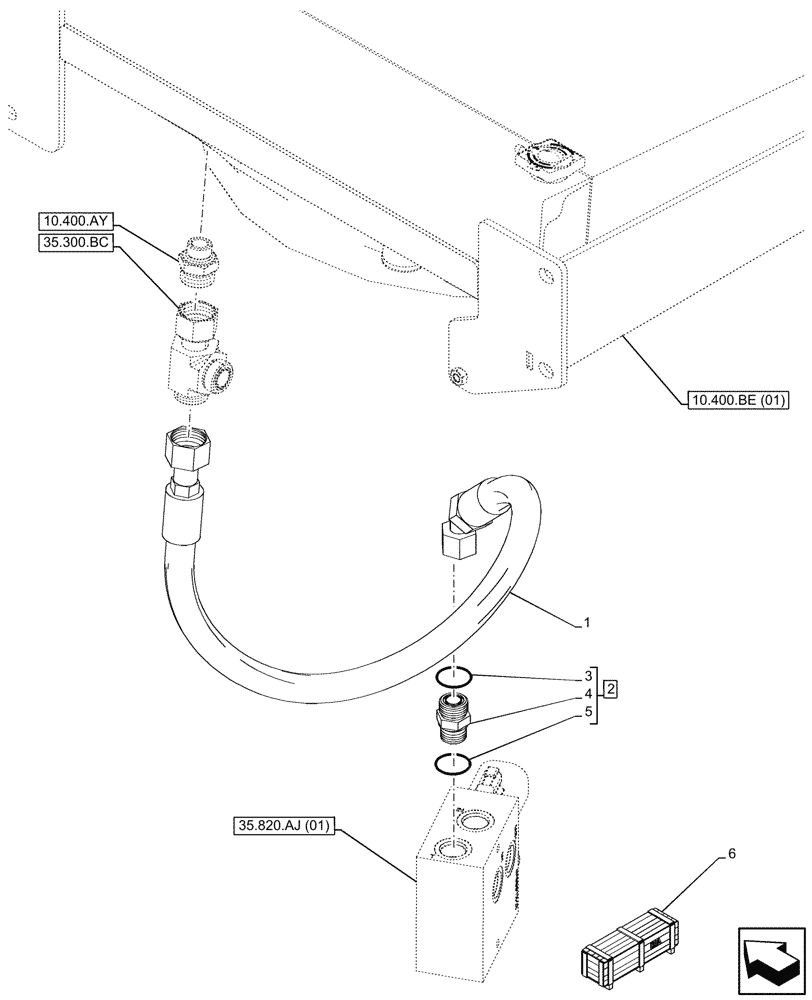

Запчасти Case IH FARMLIFT 935 (35.820.AD[01A]) - VAR - 749249 - REVERSIBLE FAN, HYDRAULIC LINE, PUMP - BEGIN DATE 29-JUN-2015 (35) - HYDRAULIC SYSTEMS

1

47530017

HYDRAULIC HOSE

Reverse Valve Port T to Cooler

1шт.

2

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 3 - 5

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

6

47936028

CONSTRUCTION DIA

Reversible Cooling Fan, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, FARMLIFT 632, FARMLIFT 635, LM7.35, LM7.42, LM7.42 FLEX, LM7.35 DA,

1шт.
