Запчасти Case IH FARMLIFT 935 (35.740.AN[02]) - TILT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

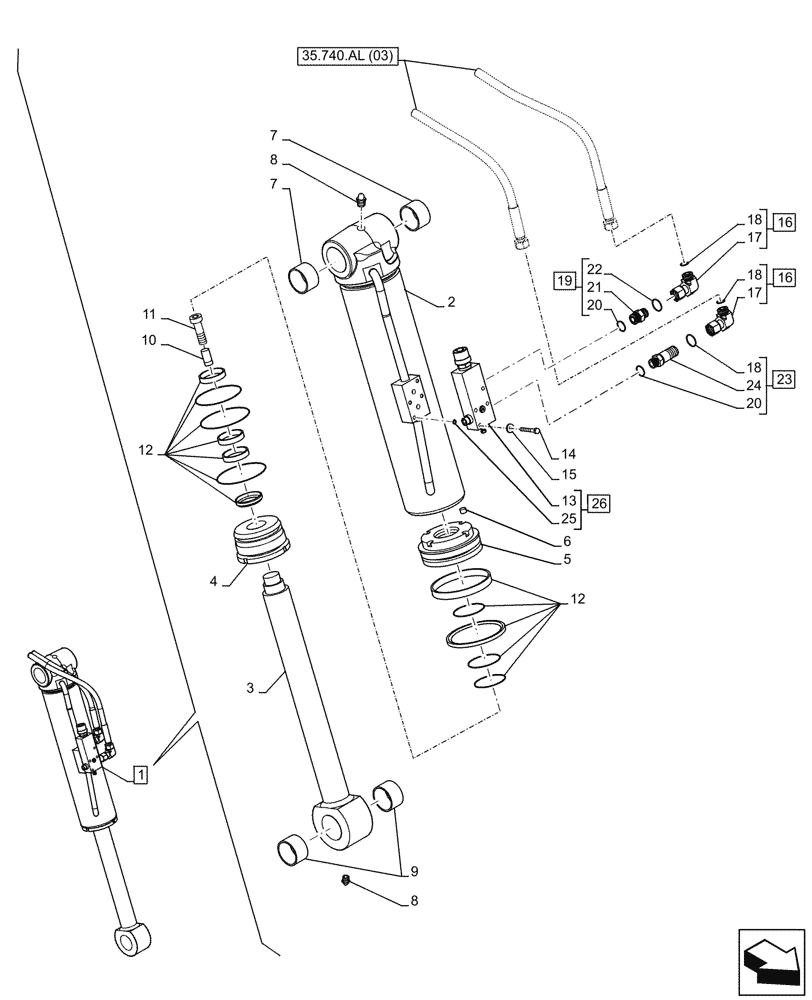

Схема запчастей Case IH FARMLIFT 935 - (35.740.AN[02]) - TILT CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS
12
1
23
18
(03)
35.740.a
17
8
21
7
1
16
20
3
25
10
18
24
15
6
13
17
22
16
14
26
4
20
12
1
2
18
9
l
8
7
19
5

Артикул

Название

Примечание

Количество

1

47560036

HYDRAULIC CYLINDER

ASSY, Incl 2 - 12

1шт.

2

47576753

ROTARY SWITCH

1шт.

3

47576748

PISTON ROD

1шт.

4

47576253

GUIDE

1шт.

5

47576252

PISTON

1шт.

6

87567435

SET SCREW

1шт.

7

47576220

BUSHING

2шт.

8

87626869

LUBE NIPPLE

2шт.

9

47576227

BUSHING

2шт.

10

47576757

BUSHING

1шт.

11

47576309

SCREW

1шт.

12

47576279

SEAL KIT

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 26

1шт.

14

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

15

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

16

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

ASSY, Incl 17, 18

2шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

2шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

19

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 20 - 22

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

22

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

23

87398567

HYD CONNECTOR

ASSY, Incl 18, 20, 24

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

84182726

SEAL KIT

1шт.

26

87311738

CHECK VALVE

ASSY, Incl 13, 25

1шт.

Выбрано товаров: 26
