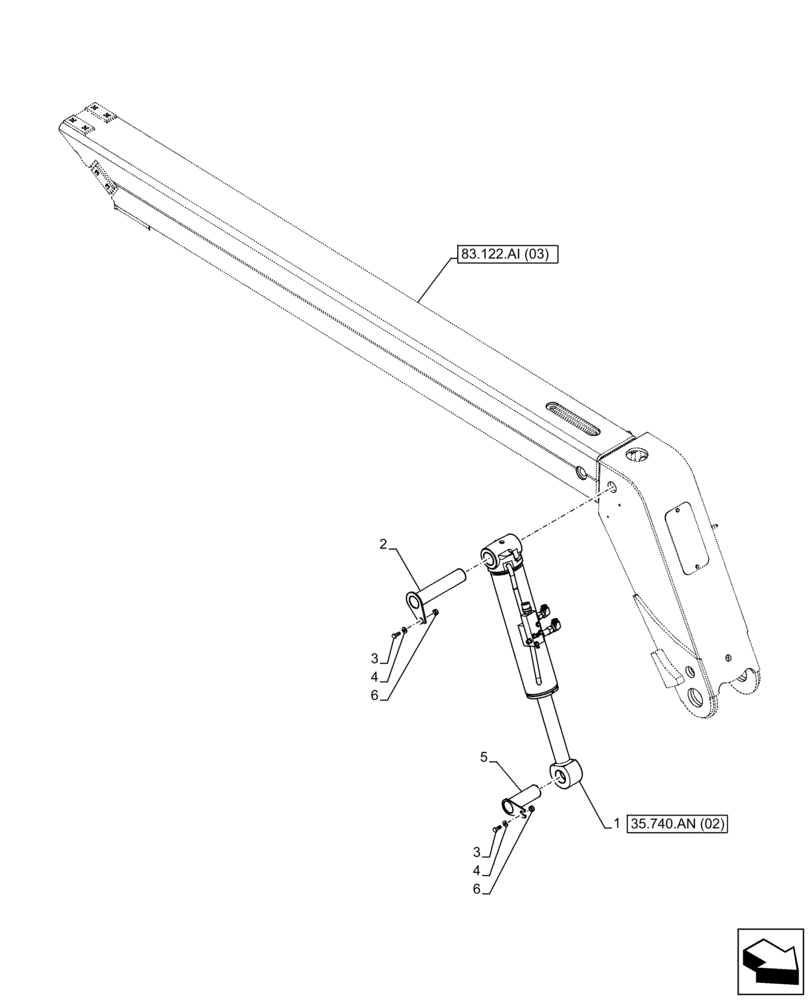

Запчасти Case IH FARMLIFT 935 (35.740.AN[01]) - TILT CYLINDER (9M) (35) - HYDRAULIC SYSTEMS

1

47560036

HYDRAULIC CYLINDER

ASSY

1шт.

2

47497369

PIN

Tilt Body

1шт.

3

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

2шт.

4

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

5

47497374

PIN

Linkage

1шт.

6

47487609

SPACER

2шт.
