(35.740.AL[02]) - TILT CYLINDER, TUBE (9M)

Запчасти Case IH FARMLIFT 935 (35.740.AL[02]) - TILT CYLINDER, TUBE (9M) (35) - HYDRAULIC SYSTEMS

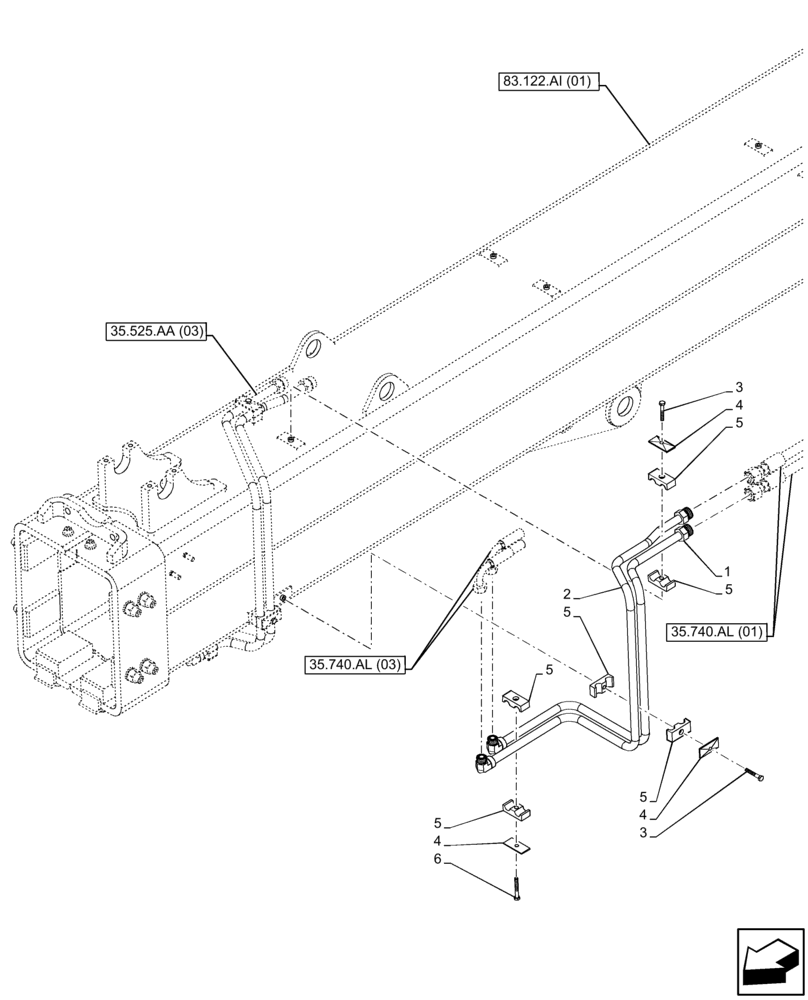

Схема запчастей Case IH FARMLIFT 935 - (35.740.AL[02]) - TILT CYLINDER, TUBE (9M) (35) - HYDRAULIC SYSTEMS
5
5
4
35.740.al (03)
5
5
4
1
6
2
35.740.al (01)
3
5
83.122.ai (01)
4
35.525.aa (03)
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47522190

TUBE

Tilt Cylinder

1шт.

2

47522192

TUBE

Tilt Cylinder

1шт.

3

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

4

84545714

COVER PLATE

3шт.

5

84545712

CLAMP

3шт.

6

86625005

BOLT,Hex, M8 x 60mm, Cl 10.9

1шт.
