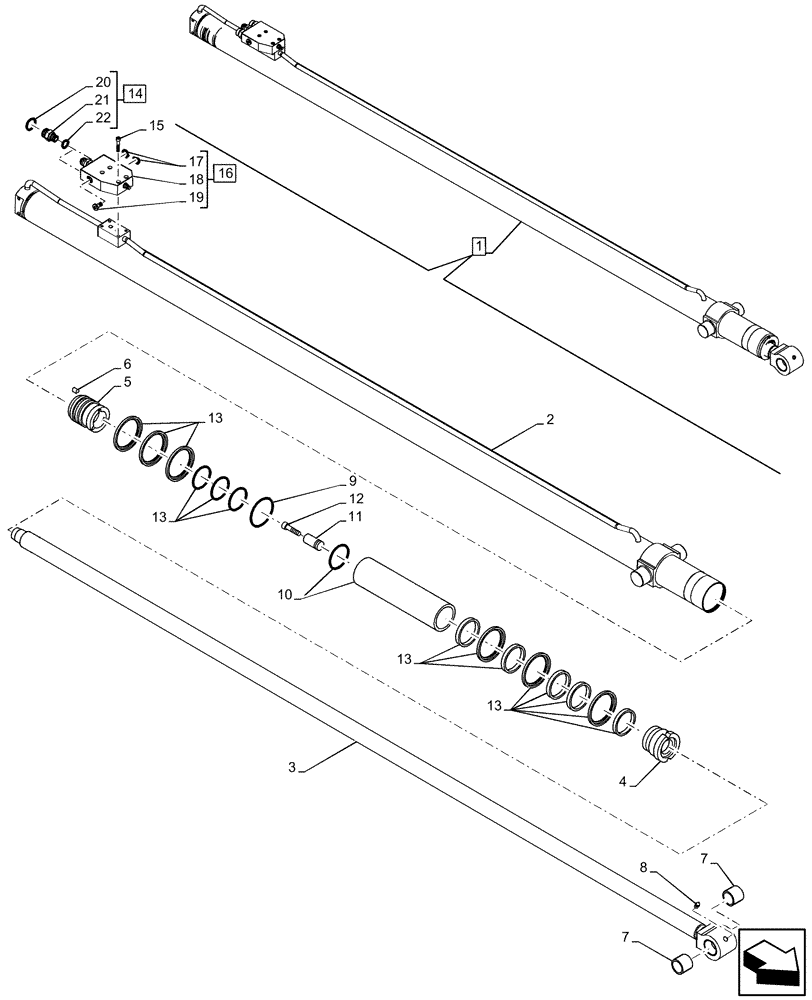

Запчасти Case IH FARMLIFT 935 (35.740.AE[02]) - BOOM CYLINDER, COMPONENTS (9M) (35) - HYDRAULIC SYSTEMS

1

47475513

HYDRAULIC CYLINDER

ASSY, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

1шт.

3

47576355

PISTON ROD

1шт.

4

47576352

GUIDE

1шт.

5

47576340

PISTON

1шт.

6

87568682

LOCK SCREW

1шт.

7

47576336

BUSHING

2шт.

8

87626869

LUBE NIPPLE

1шт.

9

47576333

RING

1шт.

10

47576325

SPACER

1шт.

11

47576319

BUSHING

1шт.

12

47576309

SCREW

1шт.

13

47576372

SEAL KIT

1шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 20 - 22, Serial Range: -NFKC61102

2шт.

14

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 20 - 22, Start Serial: NFKC61103

2шт.

15

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

16

84219581

VALVE

Oil Control, ASSY, Incl 17 - 19

1шт.

17

84207914

GASKET KIT

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl in 16

1шт.

19

84219579

PLUG

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

, Serial Range: -NFKC61102

2шт.

20

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

, Start Serial: NFKC61103

2шт.

21

NSS

NOT SOLD SEPARAT

Conncetor, Incl in 14

2шт.

22

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
