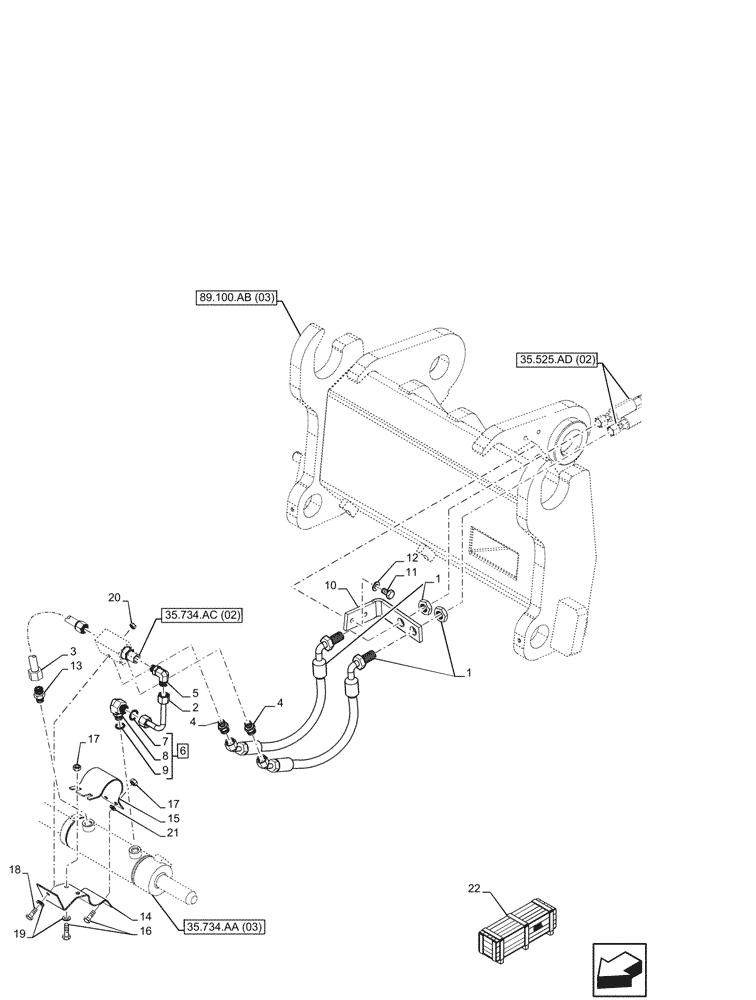

Запчасти Case IH FARMLIFT 935 (35.734.AD[02]) - VAR - 749148 - QUICK COUPLER, VALVE, HYDRAULIC LINE - END SN NEKB00126 (35) - HYDRAULIC SYSTEMS

1

47434406

HYDRAULIC HOSE

Quick Coupling to Carrier Check Valve

2шт.

2

47434399

TUBE

1шт.

3

47704655

HYD TUBE

1шт.

4

47368443

HYD CONNECTOR

3шт.

5

71436868

HYD CONNECTOR

1шт.

6

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 7 - 9

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

47434430

BRACKET

1шт.

11

87023131

BOLT,Hex, M8 x 25mm, Cl 8.8, Full Thd

2шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

13

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

14

47716911

BRACKET

1шт.

15

47716912

BRACKET

1шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

17

8475948

NUT,M10 x 1.5, Cl 8

17шт.

18

10903724

BOLT,M6 x 55, 8.8

2шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

353308

NUT,M6 x 1.0, Cl 8

2шт.

21

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

22

47610756

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
