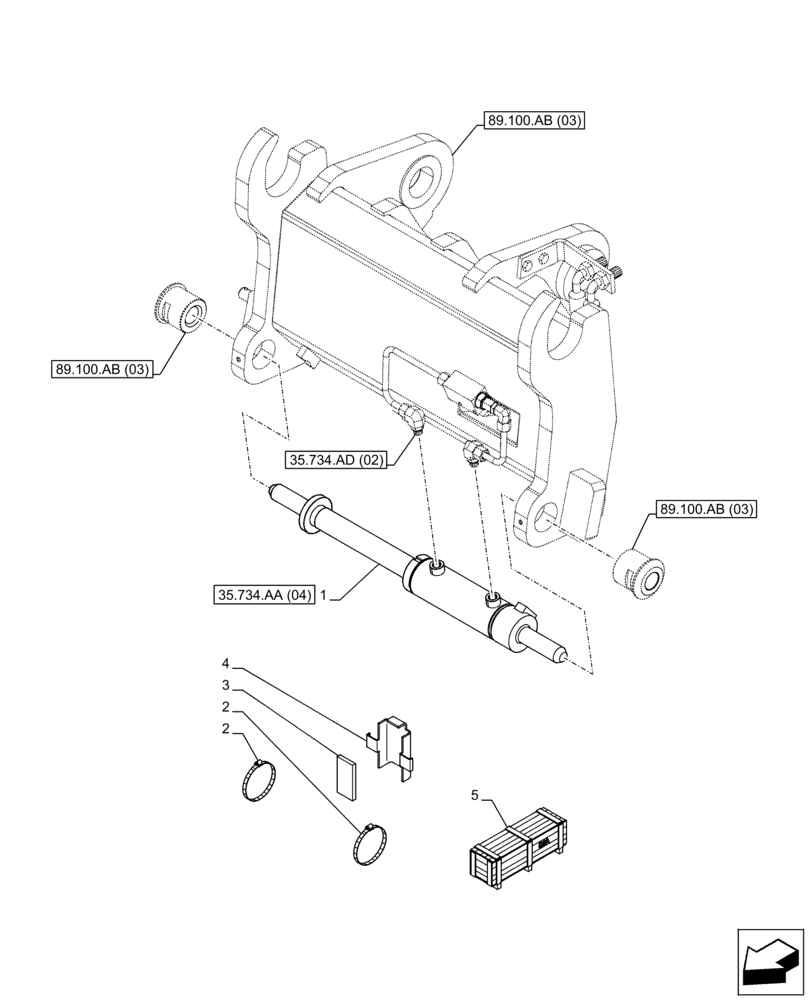

Запчасти Case IH FARMLIFT 935 (35.734.AA[03]) - VAR - 749148 - QUICK COUPLER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

47546274

HYDRAULIC CYLINDER

ASSY, Years: -18-DEC-14

1шт.

1

47804258

HYDRAULIC CYLINDER

ASSY, Start Year: 19-DEC-14

1шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

, Years: -19-APR-15

2шт.

3

47718954

SHIM

1mm, Years: -19-APR-15

1шт.

3

47718955

SHIM

0.5mm, Years: -19-APR-15

1шт.

4

47717070

SUPPORT

, Years: -19-APR-15

1шт.

5

47610756

CONSTRUCTION DIA

Hydraulic Lock Carrier, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
