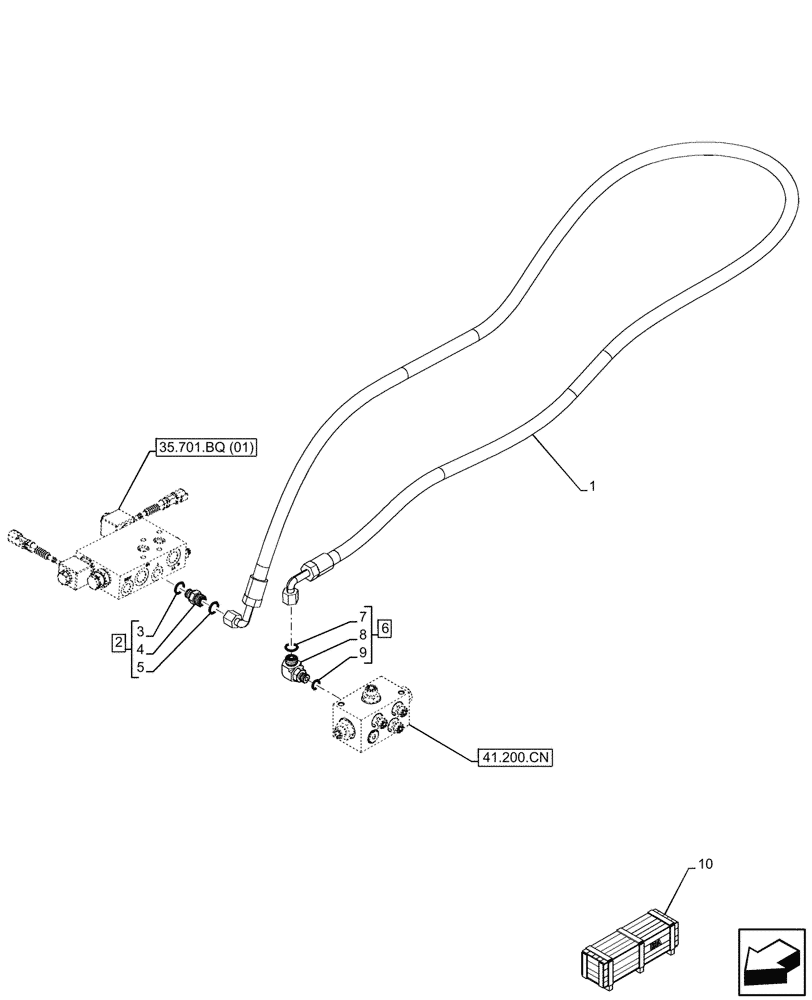

Запчасти Case IH FARMLIFT 935 (35.701.BR) - VAR - 749298 - RIDE CONTROL, VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

47390602

HOSE,12.7mm ID x 3100mm L, SAE 100R3

Ride Control Valve Port T to Return Manifold

1шт.

2

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

6

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

ASSY, Incl 7 - 9

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

9

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

10

47610746

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.32 FLEX, FARMLIFT 632, LM7.35, FARMLIFT 735, LM9.35, LM9.35 FLEX, FARMLIFT 935, LM7.35 DA, FARMLIFT 735 DA, LM6.32 NRC, LM7.35 NRC, LM9.35 NRC

1шт.

10

47613431

CONSTRUCTION DIA

Smooth Ride Control, Incl 1 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.35, FARMLIFT 635, LM7.42, LM7.42 FLEX, FARMLIFT 742, LM6.35 NRC, LM7.42 NRC

1шт.
