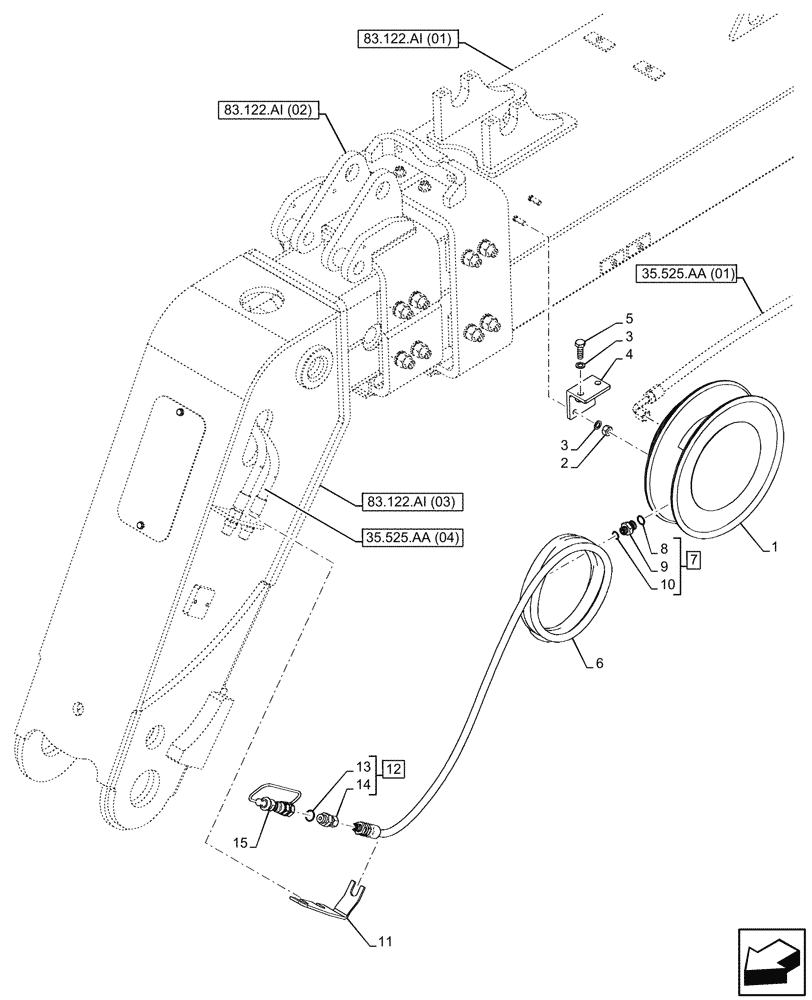

Запчасти Case IH FARMLIFT 935 (35.525.AA[08A]) - VAR - 749294 - AUXILIARY HYDRAULIC, RETURN LINE, FRONT (9M) - BEGIN DATE 26-FEB-2015 (35) - HYDRAULIC SYSTEMS

1

47800808

1шт.

2

2979506

LOCK NUT,Prev Torque Hex, M10 x 1.25, Cl 10

2шт.

3

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

4шт.

4

84604174

BRACKET

1шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

6

87485303

HOSE

Reel

1шт.

7

87485304

NIPPLE

ASSY, Incl 8 - 10

1шт.

8

84185061

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

87485305

PLATE

1шт.

12

87743811

FITTING

ASSY, Incl 13, 14

1шт.

13

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

15

47603802

QUICK MALE COUPLING

1шт.
