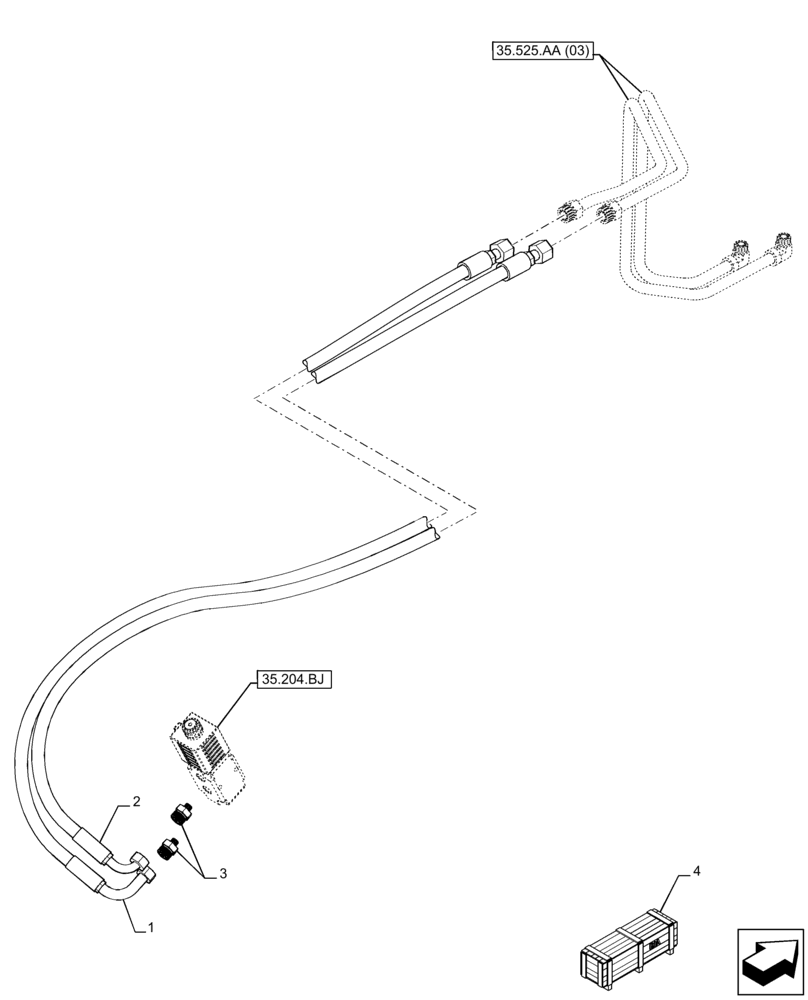

Запчасти Case IH FARMLIFT 935 (35.525.AA[07]) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, HOSE, BOOM (35) - HYDRAULIC SYSTEMS

1

84583183

HOSE,15.88mm ID x 3515mm L, SAE 100R16

Valve Port C4 to Boom Tube

1шт.

2

84583188

HOSE,15.88mm ID x 3490mm L, SAE 100R16

Valve Port C1 to Boom Tube

1шт.

3

84316432

HYD CONNECTOR,Straight, 1"-14" ORFS, 1/2"-14" BSPP ORB

2шт.

4

47610633

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, LM7.42, LM7.42 FLEX, LM9.35, LM9.35 FLEX, LM7.35 DA, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

4

47613213

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 735, FARMLIFT 742, FARMLIFT 935, FARMLIFT 735 DA

1шт.
