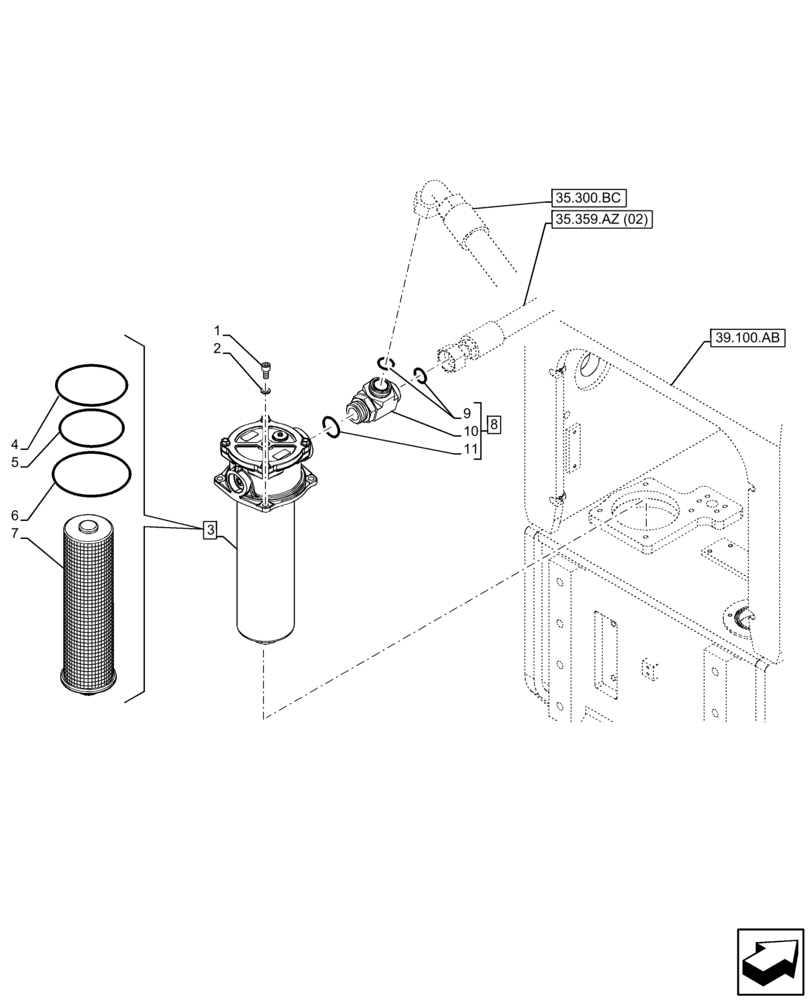

Запчасти Case IH FARMLIFT 935 (35.300.BP) - HYDRAULIC OIL RESERVOIR, OIL FILTER, OIL, RETURN, OIL (35) - HYDRAULIC SYSTEMS

1

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

2

12638631

WASHER,10.6mm ID x 18mm OD x 2mm Thk

4шт.

3

84553898

HYDRAULIC OIL FILTER

ASSY, Incl 4 - 7

1шт.

4

14467580

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

5

14473080

O-RING,0.21" Thk x 4.225" ID, -347, Cl 5, 75 Duro

1шт.

6

14473780

O-RING,129.5mm ID x 5.33mm Width

1шт.

7

47453734

HYDRAULIC OIL FILTER

1шт.

8

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

ASSY, Incl 9 - 11

1шт.

9

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

11

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Tee, Incl in 8

1шт.
