Запчасти Case IH FARMLIFT 935 (35.204.BW) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, RESERVOIR (35) - HYDRAULIC SYSTEMS

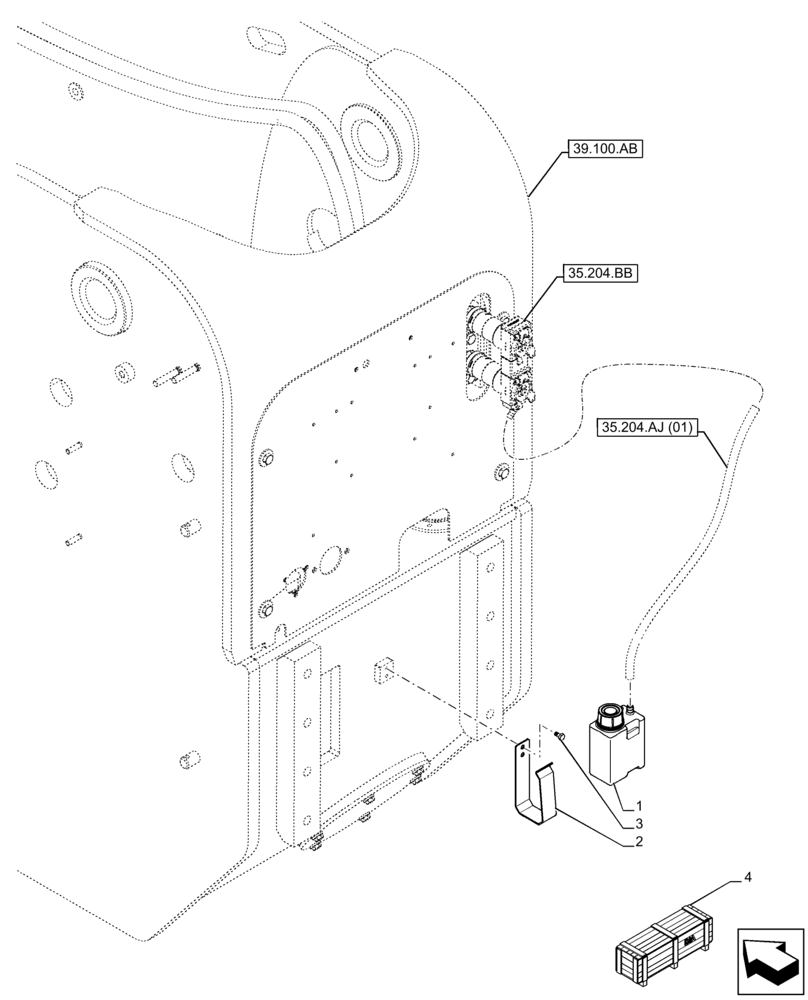

Схема запчастей Case IH FARMLIFT 935 - (35.204.BW) - VAR - 749296 - AUXILIARY HYDRAULIC, REAR, RESERVOIR (35) - HYDRAULIC SYSTEMS
35.204.bb
39.100.ab
35.204.aj (01)
2
3
1
4

Артикул

Название

Примечание

Количество

1

87555441

RESERVOIR, HYDRAULIC,600ml

Oil Collection Bottle

1шт.

2

87555442

SUPPORT

1шт.

3

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

4

47613198

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM6.32, LM6.35, LM6.32 FLEX, LM6.32 NRC, LM6.35 NRC

1шт.

4

47613205

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 632, FARMLIFT 635

1шт.

4

47613213

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models FARMLIFT 735, FARMLIFT 742, FARMLIFT 935, FARMLIFT 735 DA

1шт.

4

47610633

CONSTRUCTION DIA

One Double Acting Rear Auxiliary Hydraulic, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Only for Models LM7.35, LM7.42, LM7.42 FLEX, LM9.35, LM9.35 FLEX, LM7.35 DA, LM7.35 NRC, LM7.42 NRC, LM9.35 NRC

1шт.

Выбрано товаров: 15
