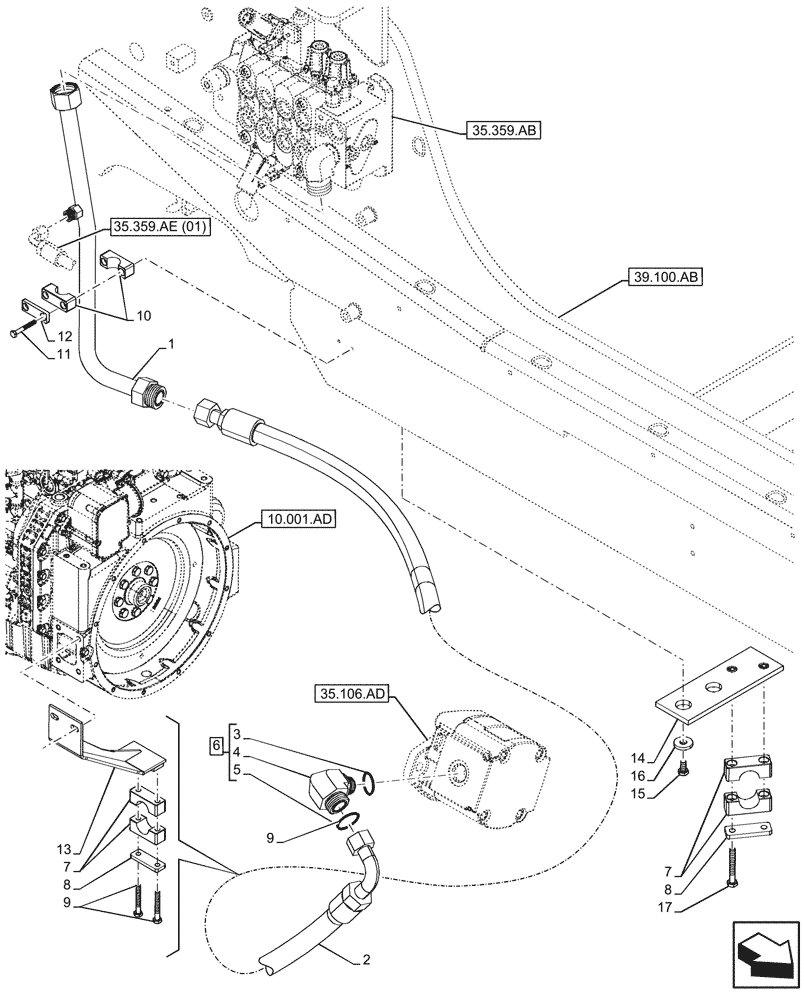

Запчасти Case IH FARMLIFT 935 (35.106.AO[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, CONTROL VALVE LINE - END DATE 20-APR-2015 (35) - HYDRAULIC SYSTEMS

1

84555845

HYD TUBE

Pump to Control Valve, Rear Section

1шт.

2

84557365

HOSE,25.4mm ID x 2340mm L, SAE 100R12

Pump to Control Valve, Front Section

1шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

6

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, Incl 3 - 5

1шт.

7

8468541

CLIP

2шт.

8

2781782

PLATE

2шт.

9

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

10

971661

CLIP

1шт.

11

84068386

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

12

598093

PLATE

1шт.

13

47721730

BRACKET

Engine

1шт.

14

47721851

BRACKET

Frame, Years: -02-NOV-14

1шт.

15

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

, Years: -02-NOV-14

2шт.

16

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

, Years: -02-NOV-14

2шт.

17

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

2шт.
